Accessories

HF Antenna Tuner w/ Meter & Antenna Switch

The MFJ-941E gives you a 300 Watt antenna tuner that covers everything from 1.8 - 30 MHz -- plus you get a lighted Cross-Needle meter with on/off switch, antenna switch and a 4:1 balun!

MFJ's lighted Cross-Needle meter shows SWR, forward and reflected power all at a glance in 300/60 and 30/6 watt ranges, 8 position antenna switch lets you select 2 coax lines, random wire/balanced line or dummy load (direct or through).

An efficient 12 position airwound inductor gives lower losses and more power out. Has 4:1 balun, 1000 Volt capacitors. The beautiful aluminium cabinet has a durable scratch-proof multicolour Lexan front panel matches your rig perfectly and fits right into your station.

SKYTRONIC Automatic Antenna Rotator

Medium Duty Rotator

VHF / UHF Amateur Beam Antennas

The Skytronic Automatic Antenna Rotator is designed for TV / FM aerials and satellite dishes. The kit includes a rotator and a control unit which are linked together by a 3 conductor cable (which is not supplied). The controller has a direction indicator for precise positioning of the aerial or the satellite dish. A mounting kit is included.

Eagle Support Bearing

Support bearing to accompany above rotator for

 that added stability and security of your antenna.

AVAIR VSWR / POWER METERS

Model	Frequency	Pwr Handling	Size	Price
AV201	1.8 - 160MHz	5W, 20W, 200W, 400W, 1000W	155 x 63 x 103mm	£49.95 (C)
AV400	140 - 525MHz	5W, 20W, 200W, 400W	155 x 63 x 103mm	£49.95 (C)
AV601	1.8-160 + 140-525MHz	5W, 20W, 200W, 400W, 1000W	155 x 63 x 103mm	£69.95 (C)







SX RANGE			£34.95 (C) SX-20     SX-40	The K-PO SX-40 is a compact SWR-PWR meter. Featuring cross needle design for measuring SWR and output power simultaneously. Compact size makes it very useful for testing mobiles as well as base station installation.
Model Frequency Impedance Power range Connector Dimensions	SX 20 1.8 -200MHz 50 Ohms 30-300 Watts UHF (M Type) 85x87x95mm	SX 40 140-525 MHz 50 Ohms 15-150 Watts UHF (M Type) 85x87x95mm
SWR SX200 / SX400 SX200 Frequency: 1.8-200 MHz SX400 Frequency: 140-525 MHz Power Ranges: 5/20/200 Connector: SO-239 Min. Power SWR Test:: 4W Illuminated meter Switchable RMS or peak power Measures forward, reflected & VSWR power 155x103x64 mm			£44.95 (C) SX200     SX400	The K-PO SX-200 & SX-400 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations.
SWR SX600 Frequency: 1.8-160 Mhz & 140-525 MHz Power Ranges: 5/20/200 Connector: SO-239 Min. Power SWR Test:: 4W Illuminated meter Switchable RMS or peak power Measures forward, reflected & VSWR power 155 x 103 x 64 mm			£59.95 (C) SX600	The K-PO SX-600 measures forward and reflected power and VSWR. Compact size makes meter useful for testing both base and mobile installations. Two directional couplers with switch and LED indicators for in-line connection of two transceivers.



---

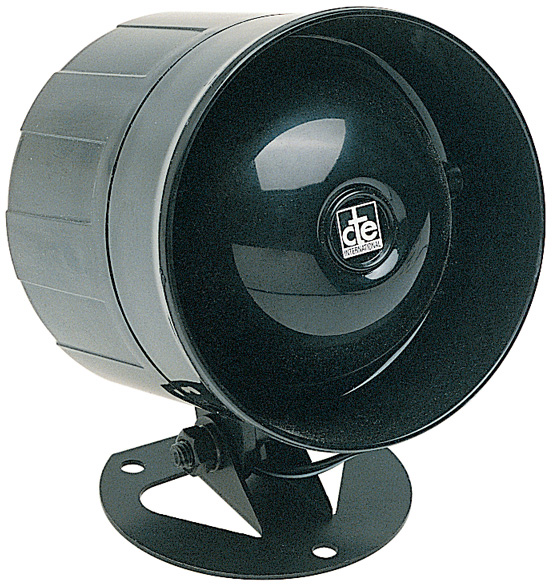

EH800 Waterproof Loudspeaker

8 Ohm, 10W max weather-proof loudspeaker.

90 x 85 x 100mm

Price: £14.95 (A)





---

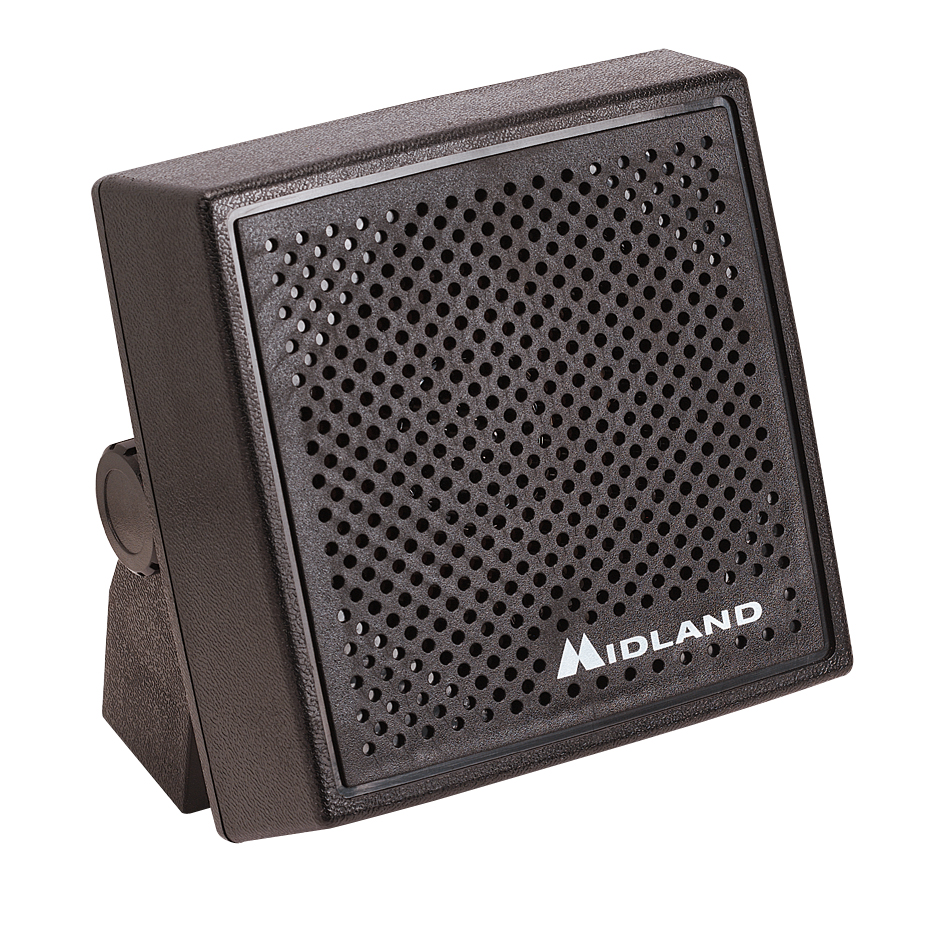

Waterproof Extension Speaker

3.2 Ohm, 20W max extension speaker with waterproof, mylar cone.

123 x 123 x 62mm

Price: £14.95 (A)
