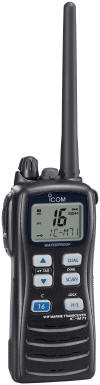

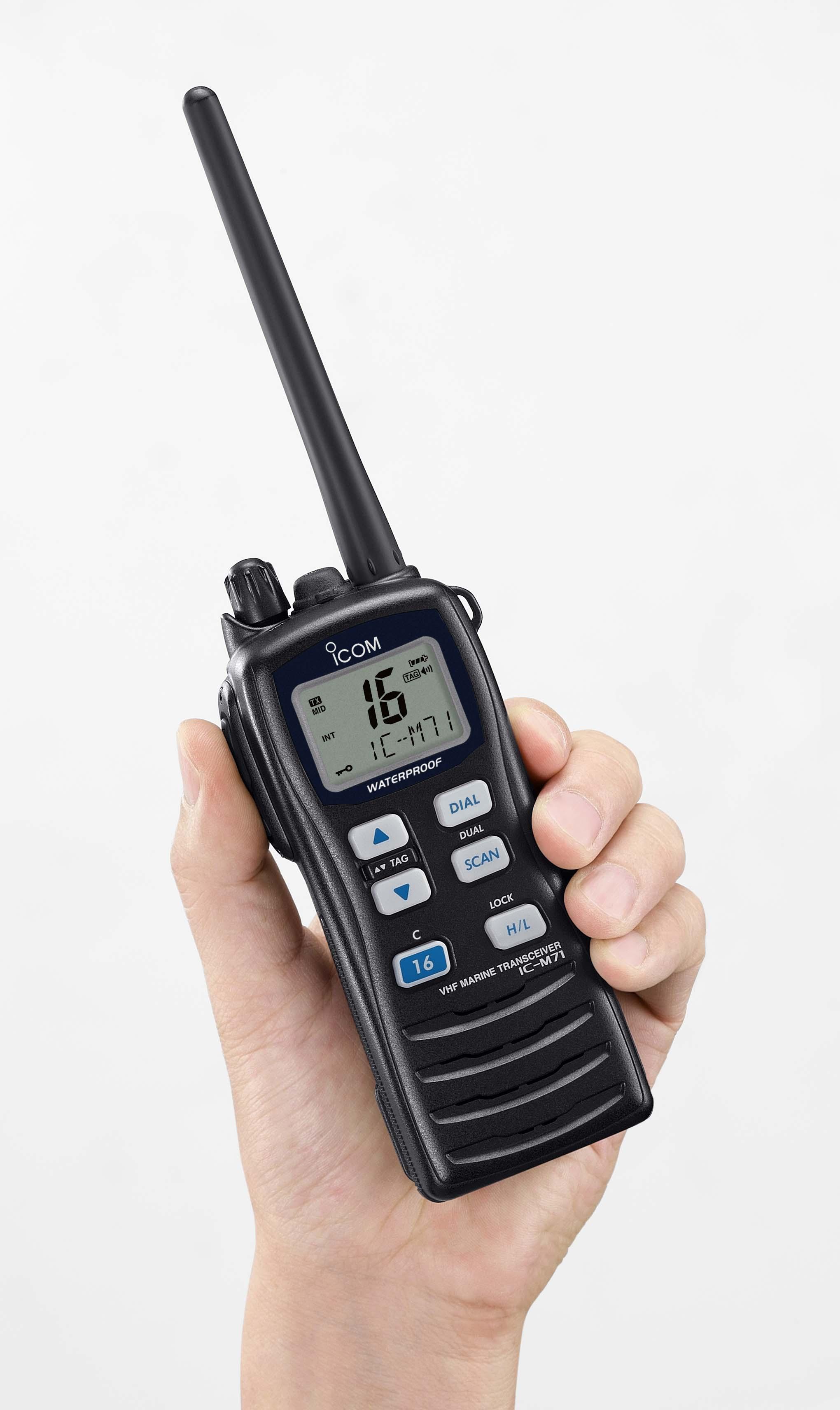

qPowerful 6W of output
power providing extended communication range.
qStandard high capacity
2000mAh Li-Ion battery pack.
qAdvanced waterproof
construction equivalent to IPX8 protection (1.5 metres/30 minutes).
q600mW AF output power
provides loud and clear audio.*(*
At 10% distortion with an 8Ωload)
qHigh resolution LCD
display with wide viewing angle.
q4-step battery life
indicator & 2-step power saver.
q70 programmable
channels.
qVOX function for hands
free operation
q2 versions available
(with or without voice scrambler).
qWide range of
accessories available.
qOptional 3 Year
warranty for end user.
g
GENERAL
Frequency range
:
Tx
156.000161.450MHz
RX
156.000163.425MHz
Usable channels
: INT, USA* plus 70
programmable
channels
(* depending on
version)
Channel spacing
: 25kHz
Power supply
requirement : 7.2V DC (nominal)
Current drain
(approx.)
Tx 6W output
1.7A
1W output
0.7A
Rx Max. audio
(Int) 400mA
Max. audio (Ext)
200mA
Usable temp.
range : 15°C to +55°C
Antenna
impedance : 50. (SMA)
Dimensions : 52.5(W)Χ125(H)Χ30 UK p&p £14 mm
(projections not
included)
Weight (approx.)
: 280g (with BP-245 and antenna)
g
TRANSMITTER
Output power
: 6W, 3W and 1W
Max. Freq.
deviation : ±5.0kHz
Frequency error
: ±1.5kHz
Spurious
emissions : 0.25΅W
Adjacent channel
power : 70dB
Audio harmonic
distortion: Less than 10% (at 60% dev.)
FM Hum and noise
ratio : 40dB
g
RECEIVER
Sensitivity
: 2dB΅ typical (emf, 20dB SINAD)
Squelch
sensitivity : 6dB΅ typical (emf; at threshold)
Adjacent Ch
selectivity : 70dB
Spurious response
: 70dB
Intermodulation : 68dB
Hum and noise
ratio : 40dB
Audio output
power (10% dist. with an 8Ω load) :
Internal SP
0.6W typical (BTL)
External SP 0.2W
Price: £167.95

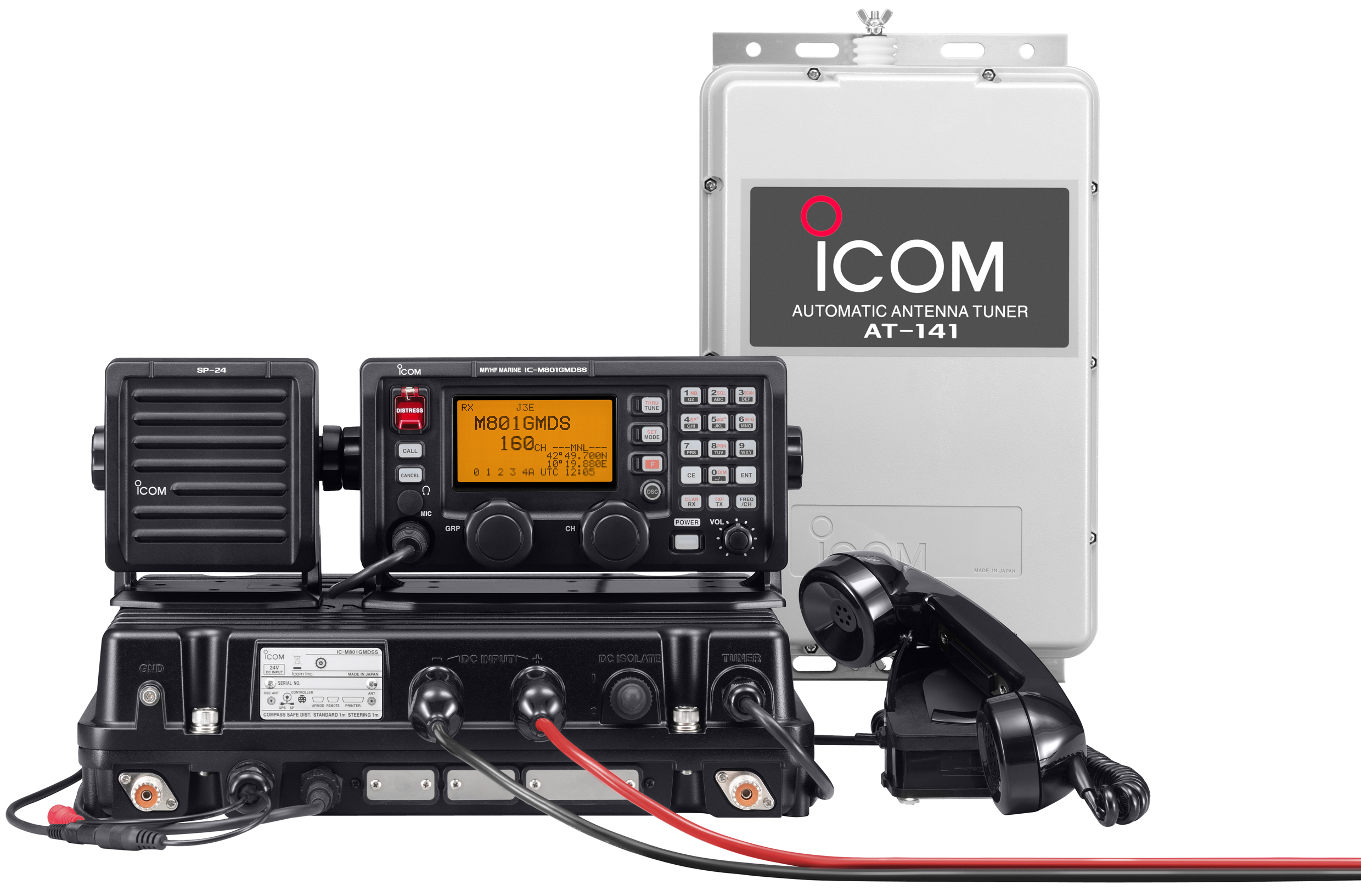

IC-M801 MF/HF Marine SSB
Transceiver (Class E)
Icom UK
Ltd is pleased to announce the launch of its new MF/HF SSB marine transceiver.
Based on the NMEA award winning transceiver, the IC-M802, the IC-M801 will be
available in two versions. The IC-M801E with Class E DSC operation is available
for non-SOLAS vessels. The IC-M801GMDSS for Class A DSC operation meets both
GMDSS and MED 96/98/EC, wheel mark requirements for SOLAS regulated vessels.
Built in DSC; Class A or Class E
IC-M801GMDSS meets GMDSS requirements and MED 96/98/EC, wheel mark
requirements for SOLAS regulated vessels
Digital Signal Processing (DSP) virtually eliminates noise and interference
Industry standard 110mm x 220mm size remote controller
Separate external speaker allows you to place the sound where its needed most
125 watts of power, 100% duty cycle
1195 channels
160 user programmable memory channels
Large backlit, dot-matrix LCD display with 10 selectable lighting levels
Large, tactile knobs, easy to use in rough marine conditions
Backlit keypad, eliminating guesswork when operating in a dark cabin
New automatic antenna tuner AT-141 matches the transceiver to a long wire
antenna with little insertion loss
"Pass-through tuning" automatically tunes for reception
Optional 3 Year warranty for end user in Mainland UK*
Output power (with AT-141) :
1.63.999MHz 85W PEP
4.027.500MHz 125W PEP
Both the 12 and 24 vdc versions
of the IC-M801 GMDSS Class A are pending type approval. These will be on sale
here as soon as they are released from Icom UK.
IC-M801E(24v)
£2589.95
IC-M801E(12v)
£2589.95
IC-M801E/A MF/HF Marine SSB
Transceiver
Accessories
AH-710
Folded Dipole Antenna
£349.95
AT-141
HF Automatic Antenna Tuner
£499.95
HM-135
Hand Microphone
£49.95
HS-98
Telephone Handset
£148.95
MB-75
Flush Mount Kit
£21.00
MN-100
Antenna Matcher (comes with two 8m antenna wires)
£247.95
OPC-1465
Shielded Control Cable
£46.95
OPC-1466
Separation Cable
£32.95
RC-25
Remote Controller
£330.95
SP-24
External Speaker (std)
£32.95

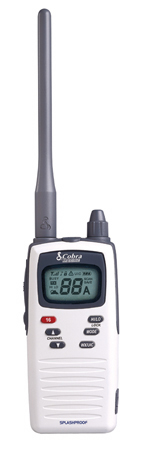

COBRA MRHH100VP EU MARINE RADIO
INTERNATIONAL, US AND CANADIAN CHANNELS
1/2 OR 2 WATTS
INSTANT CHANNEL 16
SCAN
ILLUMINATED LCD DISPLAY
WATER RESISTANT
KEY LOCK (SELECTABLE ON/OFF)
RUGGED MARINE DESIGN
ACCESSORIES INCLUDE:
WALL CHARGER (EU AND UK COMPATIBLE)
4 RECHARGEABLE NiMH BATTERIES
WATER PROOF POUCH
BELT CLIP
(available in black only)
Price: £99.95

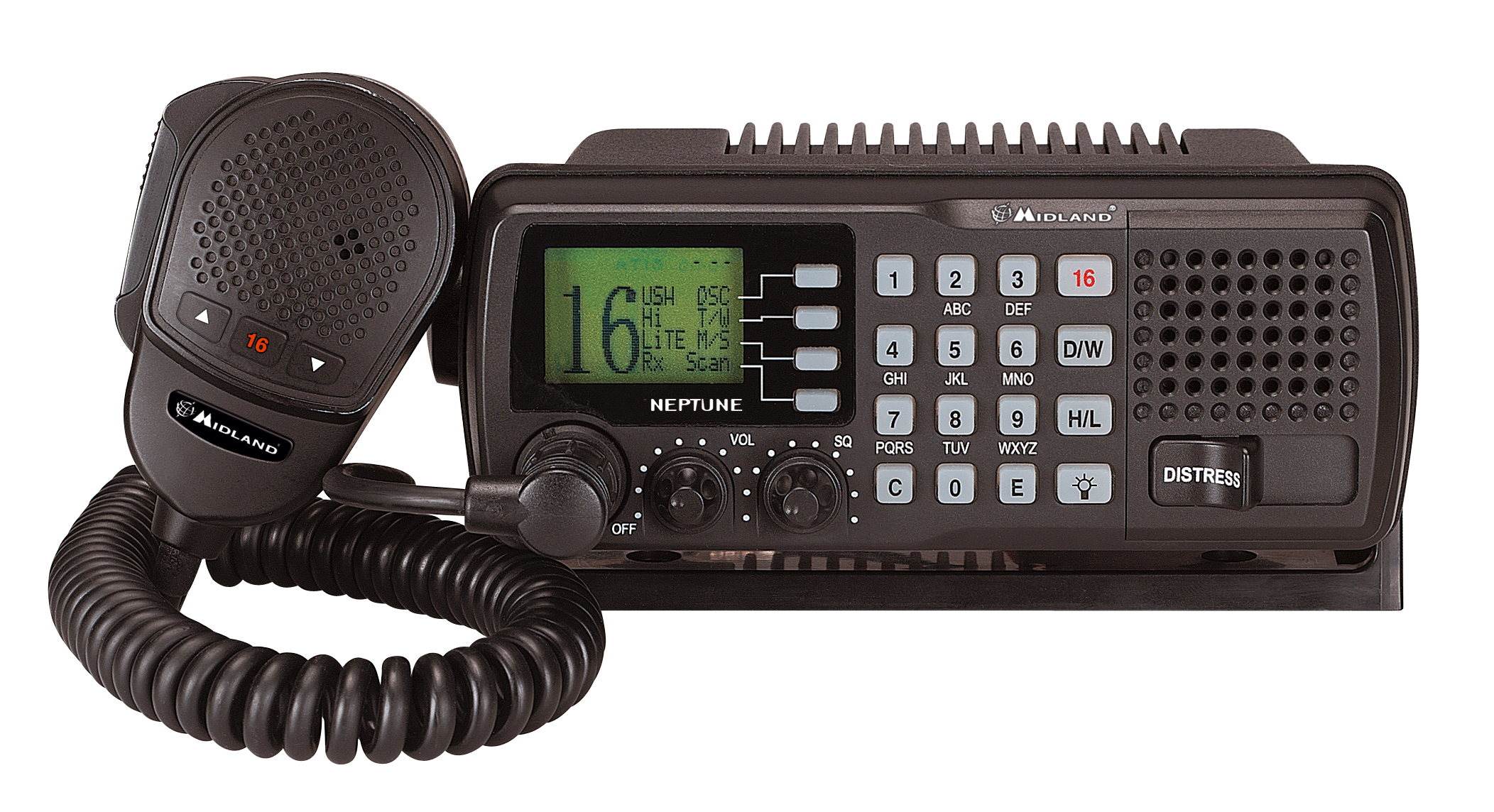

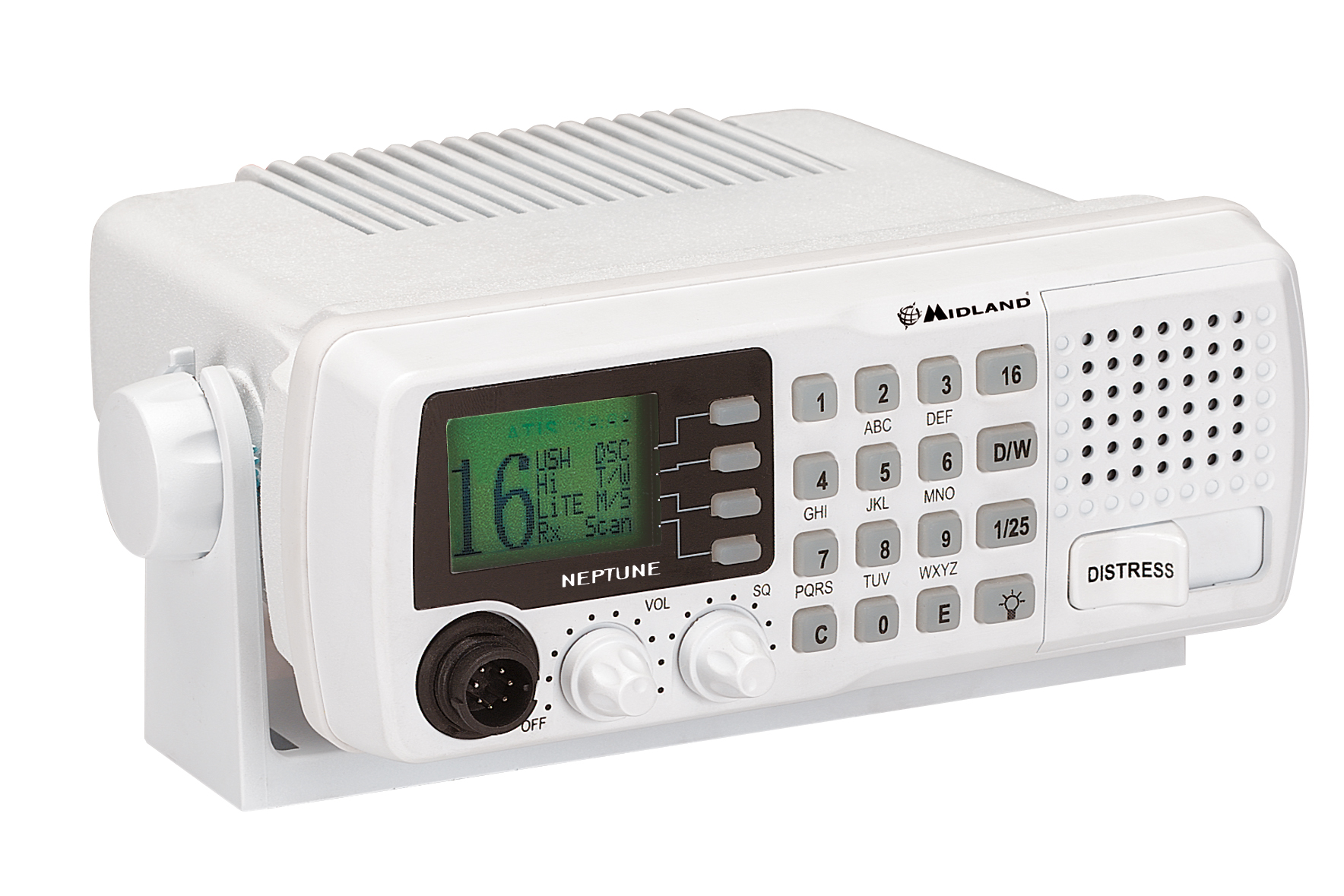

Midland Neptune Marine VHF
M1 & M2 channels
High quality die-cast aluminium chassis for improved shock
resistance
Built in DSC & ATIS system - Class D - with automatic DSC
queue. (Use of ATIS subject to local authorisation)
23 controls on front panel for instant access to all
functions
Principle buttons duplicated on hand mic for faster
accessibility
Compatible with GPS NMEA0183 protocols, decoding GPGGA
strings
Backlit keypad
Large backlit display with adjustable contrast
Adjustable squelch
Channel 16 recall button
Adjustable transmission power (25W - 1W)
Connector for optional external loudspeaker
Dual watch function (Channel 16 + channel of your choice)
Triple watch function (Channels 9 + 16 + channel of your
choice)
2 types scan function, either on all channels or on stored
channels with the possibility to create a group of channels
16 MMSI addresses programmable
20 channels can be programmed to operate on private
frequencies (subject to authorisation from authorities)
Available in either White or Black
Black: £159.00
White: £159.00

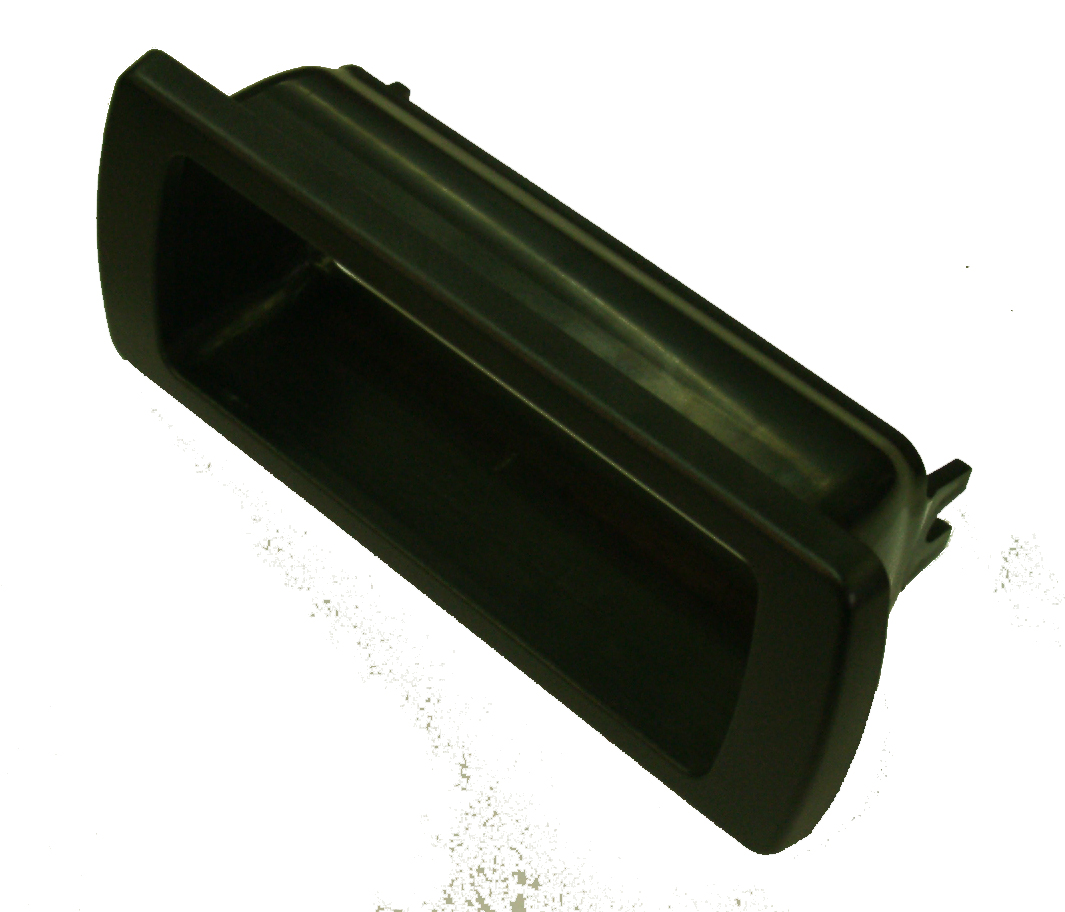

Neptune flush mount kit
Flush mounting kit for use with
the Midland Neptune DSC VHF radio.
Includes cutting template and
fixing screws.
Available in black or white.
Black: £24.95
White: £24.95

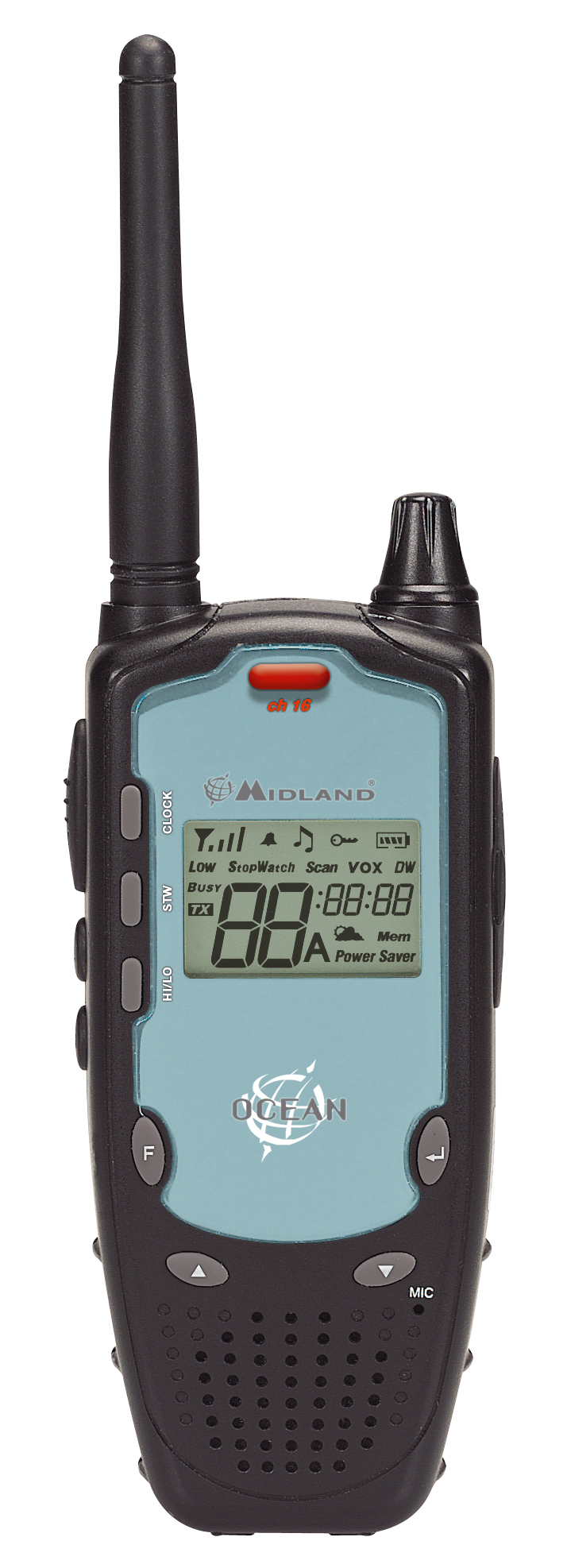

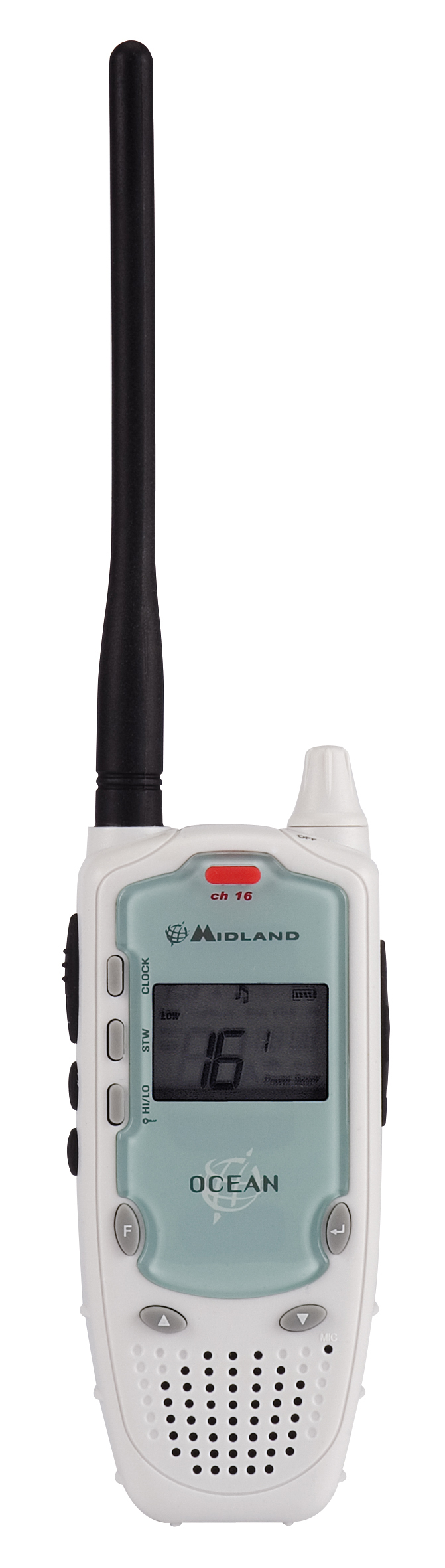

Midland Ocean Hand Portable
Marine VHF
Feature rich marine band VHF portable
M1 & M2 Channels programmed as P1 & P2
Wide backlit LCD display
Can store up to 20 private VHF channels
(subject to local authorisation)
Quick recall and scanning of stored channels
Emergency Channel 16 button
Chronometer with average time
Clock
Low battery indicator
Call button with 10 selectable ringtone
melodies
Automatic squelch adjustment
Adjustable transmission power (0.5W - 2W)
Scan function
Dual watch function
Keypad lock
VOX for hands-free communication
Jack for external microphone and/or speaker
Roger beep on/off
Belt clip, rubber antenna, wall charger and
hi-capacity batteries included in price
Channels
56 International
Frequency band TX
156.025 - 157.425 MHz
Frequency band RX
156.300 - 162.000 MHz
Batteries
4 AA type or alkaline batteries 6V
Operating temperature
-15 to +55 oC
Weight (device only)
157 g
Dimensions
55(L) x 126(H) x 38 UK p&p £14 mm
Modulation
FM
Output power
HI: 2W / LO: 0.5W
Jack for external mic / recharge
mono 2.5mm
Jack for external speaker
mono 3.5mm
Conforms with
CE/99/05
EN301 178-2 norms
Available in white or black
White: £79.95
Black: £83.95

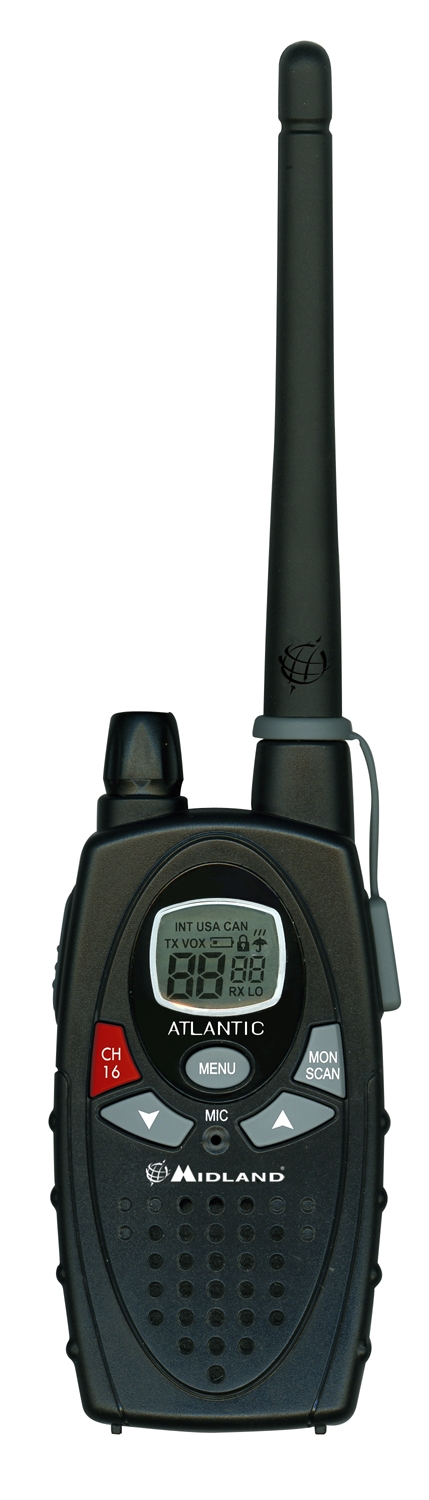

Midland Atlantic Hand
Portable Marine VHF
Simple to use, uncomplicated VHF marine
portable
Accessory pack includes batteries, wall charger
and waterproof carry case
Backlit LCD display
Auto power save/current economy circuit
Low battery indicator
Emergency channel 16 button
Call function
Automatic squelch adjustment
Buttons for channel selection
SCAN function
Keypad lock
Adjustable transmission power (1W - 5W)
VOX for hands-free communication
Roger beep (end transmission tone)
Jack for external microphone and/or speaker
Channels
56 International
Frequency band TX
156.025 - 157.425 MHz
Frequency band RX
156.300 - 162.000 MHz
Batteries
4 AA type or alkaline batteries 6V
Operating temperature
-15 to +55 oC
Weight (device only)
119 g
Dimensions
58(L) x 122(H) x 34 UK p&p £14 mm
Modulation
FM
Output power
HI: 5W / LO: 1W
Jack for external mic / recharge
mono 2.5mm
Jack for external speaker
mono 3.5mm
Conforms with
CE/99/05
EN301 178-2
EN60950
EN301 843-2
Price: £69.95
EH800 Waterproof Speaker
8 Ohm, 10W max weather-proof loudspeaker.
90 x 85 x 100mm
Price: £14.95
Waterproof Extension Speaker
3.2 Ohm, 20W max extension speaker with
waterproof, mylar cone.
123 x 123 x 62mm
Price: £15.95
Solarcon Ground Zero CB
Antenna
If you need an aerial but don't
have the metal then this is for you.
The Solarcon Ground Zero does
not require a ground plane.
Mounts by way of the 3/8th
thread connector as standard but this is only used as the mount!!
Incorporated on this antenna is
a T-piece attachment with a PL-259 socket, this is where your coax feed is
connected. Pre-Tuned for the 27MHz band but by adjusting the position of the
T-Piece attachment this antenna will work just as well on either 10 or 11
meters.
Ideal for fitting on boats,
campers, motorbikes or anyplace where there is that shortage of metal!!
Price: £26.95
Shark 3 Marine VHF Antenna
The Shark 3 VHF antenna from
Midland covers 156 - 162 MHz with a capable power output of 100W
Antenna length : 1.4m
SO239 connector
Price: £44.95
Shark 4 Marine VHF Antenna
The Shark 4 VHF antenna from
Midland covers 156 - 162 MHz with a capable power output of 100W
With its multi-angle deck mount
this extremely robust marine antenna can be mounted practically anywhere.
Comes complete with 4 meters of
50 Ohm white coaxial cable and bolt fixings.
Price: £49.95
Alan GPS200 Active GPS Antenna
The GPS200 is a GPS Satellite receiver that is intended for
use in leisure and semi-professional applications.
Installation to your Neptune VHF radio is as simple as
connecting the (supplied) connector to the plug on the back of the radio!
It can also be connected to a range of other laptops and
marine DSC transceivers to provide lat & long information.
Supports NMEA0183 v2.2
WAAS & EGNOS demodulator and NDGPS/US Coast
guard beacon support
12 parallel satellite tracking channels
Built in rechargeable battery for memory and
RTC backup
Suitable for use with a large range of
laptops/personal navigation programmes/tracking devices/mapping systems
The IC-M127 features a Smart
microphone that allows you to access a number of functions directly.
You can conveniently control
channel up/down as well as output power directly from the microphone.
Output Power:
High 25W Low 1W
Power Supply Requirement:
13.8 V DC +/- 15%
Scan Speed: 8
Channels / Second
Dimensions: 229(W) x 78(H) x
220 UK p&p £14 mm
Auto Fog Horn Function With 4
Selectable Patterns
2-Way Hailer Function With 10W
Amplifier Built In
Ex Display Price: £225.00
(Whilst stocks last)
Prices and specifications are
correct at date of publication but subject to availability or change without
notice. Photos for illustrative purposes only - actual items may differ from
photo.
