Coastal Communications

Get Your Amateur Radio Licence!

UHF / VHF Mobile

Amateur Radios


Icom     Kenwood    Yaesu

For price & availability, please email : sales@coastalcomms.org.uk

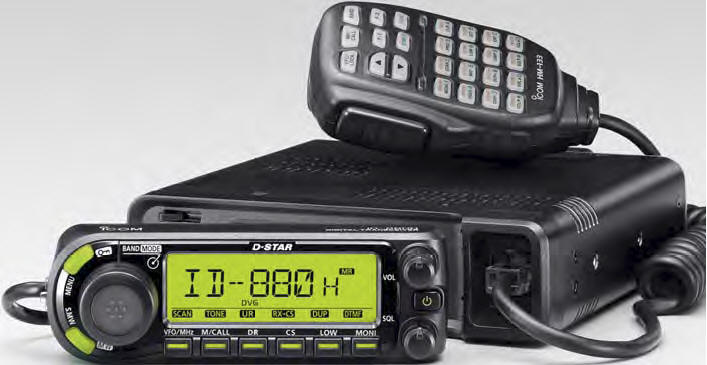

Icom ID-880 D Star Ready Dual Band Mobile

Switchable VHF/UHF dual band
The ID-E880 provides VHF/UHF dual band capabilities (one band at a time) via a simple band switching system.
Wideband receiver
The ID-E880 has a wideband receiver as a standard feature and covers 0.495-999.99MHz*. Listen to aviation, marine, weather channels and other utility communications. *Receiver range depending on versions. See specification page.
CS-80/880 free download cloning software
The CS/880 free download cloning software is available from the Icom Inc (Japan) web site. Used with this software, various settings can be made from a PC and the memory channels and other settings can be shared between IC-E80D and its matching mobile unit, the ID-E880. Please download from http://www.icom.co.jp/world/support/download/firm/. *Either OPC-1529R, OPC-478 or OPC-478UC optional cable is required.
1052 memory channels
The ID-E880 has a total of 1052 memory channels (including 1000 regular channels, 50 scan edges and 2 call channels) with 26 memory banks. All memory channels and the program scan can be named with 8-character channel comments. Also each memory bank can be named with a up-to 6-character bank name comment.




Icom ID-880

Supplied accessories

(*depending on version)

Hand microphone, HM-133

Separation cable,

OPC-1154A

(3.4 m; 11.2ft)

DC power cable,

OPC-1132A

Microphone hanger

Mounting bracket kit

Remote controller bracket



PDF Brochure


For price & availability, please email : sales@coastalcomms.org.uk

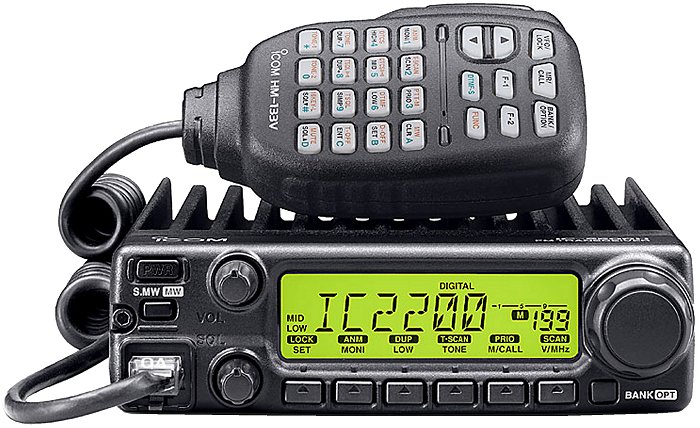

Icom IC-2200H 2M Transceiver

Icom IC-2200H

144 - 146MHz FM

65, 25, 10, 5W RF output

207 memories plus 1 call & 6 scan edge channels

Switchable ±5.0 / ±2.5kHz deviation

Selectivity: Wide/Narrow

CTCSS & DTCS operation standard

Selectable green or amber display

Rx Sensitivity: <0.133uV for 12dB SINAD

Audio: 2.4W output

Transmit current: 15A (65W)

Receive current: 1A (max audio)

Standby current: 0.8A

Supply: 13.8V DC

Size: 140 x 40 x 146mm

Weight: 1.25kg

Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk


Icom IC-E2820 Dual Band Transceiver

When the optional UT-123 Digital/GPS unit is installed the IC-E2820 advanced mobile is capable of both D-STAR Digital Voice and GPS operation. The IC-E2820's GPS features include; position information exchange, plotting your position onto mapping software on a PC.

Advanced features; D-STAR Digital Voice facilities and GPS functionality take the ICE2820 into a new realm of Amateur radio communications.
Icom IC-E2820

  • VHF/VHF, UHF/UHF simultaneous receive capability
  • New diversity receive capability. *Two antennas are required.
  • Large, attractive full dot-matrix display
  • 50W output power (VHF/UHF bands)
  • New DV mode + GPS receiver (with optional UT-123)
  • 522 memory channels
  • Built-in wide band receiver
  • Separated controller from main unit
  • HM-133 remote control microphone as standard
  • 9600bps data terminal
  • 2 Year Warranty on transceiver

Built-in wide band receiver
In addition to the VHF/VHF, UHF/UHF dual band capabilities, the IC-E2820 has a wideband receiver which covers 118–549.995 and 810–999.990MHz. This means you can listen to various communications in your vehicle or shack. The IC-E2820 has high speed scan capability of 45-channel/sec. (in program scanning mode). This allows you to scan quickly when searching a wide frequency range.

Diversity receive capability
Diversity receive* mode is useful for mobile operation where the received signal strength changes continuously. It compares the signal strength and chooses the antenna with the better signal to maintain good sound and receive quality.
* Two antennas are required. 127, 136, 146, 375, 440, 500MHz band in FM/FM-N/DV mode only. Diversity reception is not available while using the dualwatch.


For price & availability, please email : sales@coastalcomms.org.uk

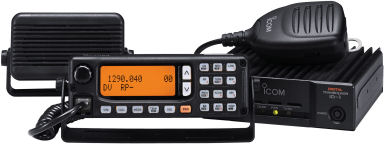

Icom ID-1 23cm DSTAR digital/analogue Mobile Transceiver



The ID-1 can operate in both Digital Voice and Digital Data Mode as well as conventionally with current analogue 1.2GHz repeaters. The ID-1 has an operating frequency range of 1240-1300 MHz, with FM and GMSK (Digital) modulation formats providing clear voice and high-speed data transmission (128kbps). The D-STAR digital repeater system allows you to relay the digital voice and data offering long distance communication capability through multiple repeater links and/or an Internet gateway relay.

PC Remote Controller Supplied The controller software is supplied with the ID-1. When the ID-1 is connected to a PC via a USB cable, most functions of the ID-1 can be controlled from the PC. In Digital Data mode operation, you can browse web sites and send and receive e-mail as if the ID-1 is a 10W wireless network adapter. * Ethernet port is required for Digital Data mode operation.
* Service may not be provided at repeater site.

Short message in DV mode Short messages of 20 characters max. can be sent in Digital Voice mode operation.

Useful Callsign Function The ID-1 has useful callsign function that embeds your own and the called station’s callsign in your transmission. When you input “CQCQCQ” as the intended station, you can make a CQ call in the area. The calling station’s ID is displayed on the received station and a newly received callsign can be automatically stored in the memory.

Digital Callsign Squelch (DSQL) & Digital Code Squelch (CSQL) The DSQL opens the squelch, only when your callsign is received. When you share a single callsign with a club or group members, the CSQL function allows you to set a CSQL code from 00 to 99 and provides quiet stand-by while other members are talking.

EMR Mode Operation When you require the attention of all stations in the area, the Enhanced Monitor Request (EMR) mode operation allows the caller to bypass the CSQL and DSQL setting of the receivers station. During EMR mode operation, all receiving stations will hear your audio, even though they may be muted.

Analogue FM Mode Operation The ID-1 also operates in analogue FM mode, allowing you to communicate with an analogue FM transceiver. In FM mode operation, the ID-1 has CTCSS tone squelch for quiet stand-by.

ID-1 Additional Features
• 950bps (approx.) data communication capability in Digital Voice mode
• 105 alphanumeric memory channels
• AFC (Automatic Frequency Control) function
• S-meter squelch
• Break-in communication Programmed, memory and select mode scan
• Stand-by beep
• Short Text Messaging
• Call Record, displays Calling stations
• Break function
• CTCSS encode/decode

Specifications
• Operate in both D-STAR Digital Voice and Digital Data Mode
• Works with current analogue 1.2GHz repeaters
• PC Remote Control
• Short message in DV mode
• Callsign Function
• Digital Callsign Squelch (DSQL) & Digital Code Squelch (CSQL)
• EMR Mode Operation (Emergency)
• 950bps (approx.) data communication capability in Digital Voice mode
• 105 alphanumeric memory channels

For price & availability, please email : sales@coastalcomms.org.uk

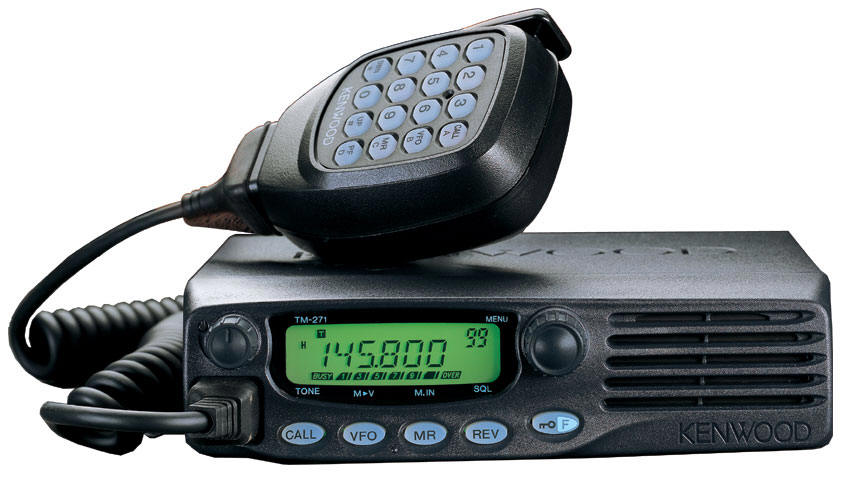

KENWOOD TM-271E 2 Meter Transceiver

Kenwood TM-271E

Frequency range: 144-146MHz

Mode: F3E (FM), F2D

RF output: HI 60W, LO 25W

200 memories + 1 call channel

Built-in CTCSS/DCS encoder / decoder

1750Hz tone burst

1200/9600 bps Packet ready

Alphanumeric LCD & illuminated keypad

Memory name function

Channel display mode

Wide/Narrow deviation selection (per channel)

DTMF microphone as standard

Busy channel lockout

Memory channel lockout

Direct frequency entry

Automatic simplex checker

Multiple scan functions

High quality front speaker

Size 160 x 43 x 137mm

Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk

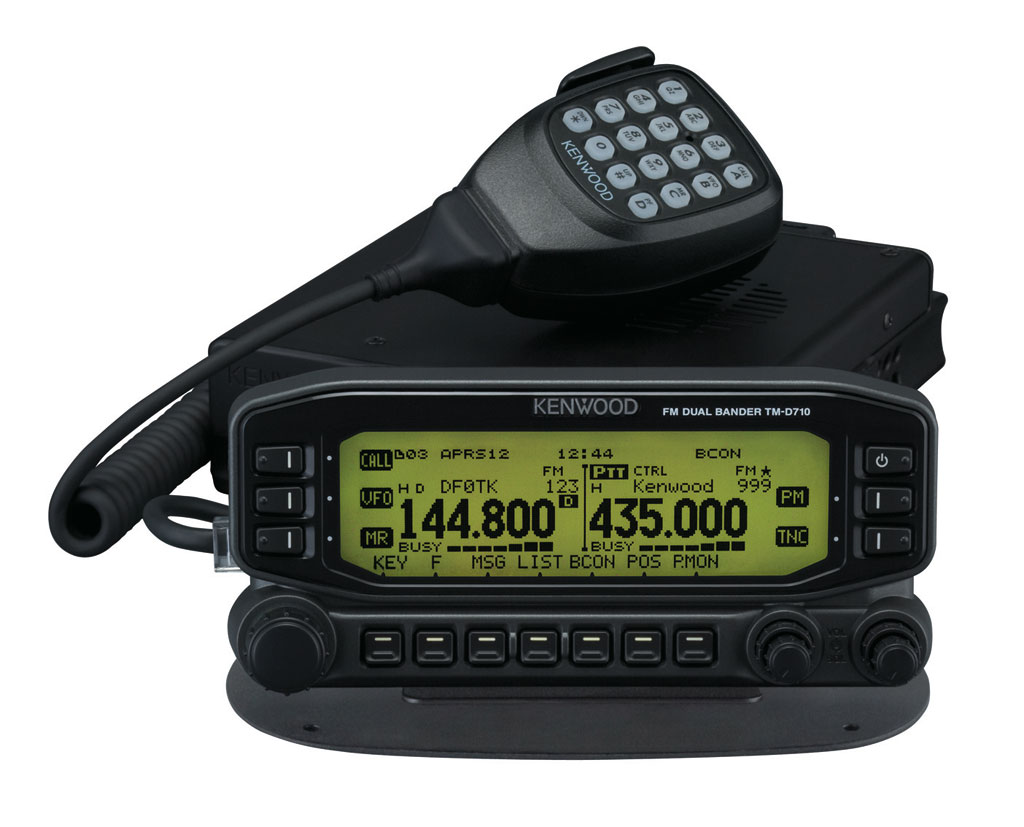

KENWOOD TM-D710E Dual Band Transceiver

Kenwood TM-D710E



Key Features

  • Dual-Band Mobile Transceiver
  • 50 Watts Output on both VHF and UHF
  • 1010 Memories with Alpha-Tag Feature
  • 2-Metres/70cms TX plus 118-524 & 800-1300MHz RX
  • Built-In APRS & Weather Station Functionality, plus EchoLink
  • 2-Colour Display (Amber or Green)



Specifications

RF Output Power - High (VHF/UHF)

50/50 W

RF Output Power (approx.) - Medium

10 W

RF Output Power (approx.) - Low

5 W

TX Frequency Coverage - VHF/UHF

144 MHz to 146 MHz / 430 - 440 MHz

RX Frequency Coverage - VHF/UHF

118 - 524 MHz / 800 MHz to 1300 MHz

Modes

F1D, F2D, F3E

Power Requirement

13.8 V DC ± 15%

Current Drain - TX

Less than 13 A (Hi-Power), Less than 5 A (Low-Power)

Current Drain - RX

Less than 1.2 A

Antenna Impedance

50 Ohm

Microphone Impedance

600 Ohms

Transmitter Spurious Radiation

Less than -60 dB

Transmitter Modulation

Reactance Modulation

Transmitter Modulation Distortion

Less than 3% (300 Hz to 3 kHz)

Receiver Circuitry

Double Super Heterodyne

Receiver Squelch Sensitivity

Less than 0.1 µV

Frequency Tolerance

± 5 ppm (-10 °C to +50 °C)

Transmitter Maximum Frequency Deviation - Wide

± 5 kHz

Receiver Intermediate Frequency - 1st IF

"A" Band/"B" Band = 45.05/49.95 MHz

Receiver Intermediate Frequency - 2nd IF

"A" Band/"B" Band = 455/450 kHz

Receiver Sensitivity

Less than 0.16 µV at 12 dB SINAD (VHF/UHF)

Receiver Selectivity

More than 11 kHz at -6 dB, Less than 30 kHz at -50 dB

Operating Temperature Range

-20 °C to +60 °C

Weight

1.5 kg (approx.)

Amateur Radio General Features

DTMF Microphone

DTMF Encoder

DTMF Memory

Multiple Scan Functions

Built-in Packet TNC 1200/9600 bps

PC Programmable Memories

Large Amber or Green-coloured Backlit LCD Display

Variable LCD Brightness with Automatic Dimmer

CTCSS Encoder/Decoder

DCS Encoder/Decoder

1010 Memory Channels with Alpha-tagging

Wide/Narrow Deviation Selection

Power-On Message

Power-On Password Protection

1750 Hz Tone Burst Function.

Automatic Simplex Checker

Reverse Repeater Checker

Key Beep On/Off

Auto Power Off

Time-Out Timer

Channel Display Mode

Memory Channel Lock-out

MR-Shift

Key Lock

Data Connection for External TNC

8-pin Mini-DIN COM Port

Full Dual-band operation: V+V/V+U/U+U

Simultaneous 2 frequency RX

GPS Port (NMEA 0183)

Automatic Repeater Offset (VHF)

Advanced Intercept Point (VHF & UHF)

5 Programmable Operating Profiles (PM Function)

Mute Function

Menu System for individual set-up

ECHOLINK Sysop Mode for Node Terminal Operation

ECHOLINK Memory Dialer Channels

Programmable Function Keys

Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk

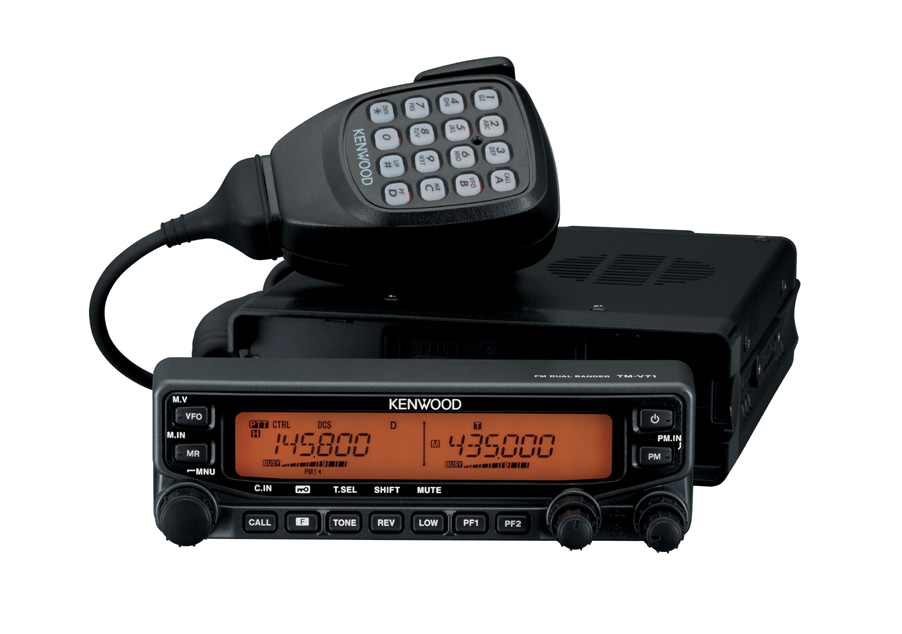

KENWOOD TM-V71E Dual Band Transceiver

Kenwood TM-V71E







Dual-Band Mobile Transceiver
50 Watts Output on both VHF and UHF
1010 Memories with Alpha-Tag Feature
2-Metres/70cms TX plus 118-524 & 800-1300MHz RX
Built-In EchoLink Functionality with 10 Dedicated Memories
2-Colour Display (Amber or Green) with Invertible Head Unit



DTMF Microphone Channel Display Mode
DTMF Encoder Memory Channel Lock-out
DTMF Memory MR-Shift
Multiple Scan Functions Key Lock
Large Amber or Green-coloured Backlit LCD Display Data Connection for External TNC
Variable LCD Brightness with Automatic Dimmer 8-pin Mini-DIN COM Port
CTCSS Encoder/Decoder Full Dual-band operation: V+V/V+U/U+U
DCS Encoder/Decoder Simultaneous 2 frequency RX
1010 Memory Channels with Alpha-tagging PC Radio Control Program
PC Programmable Memories Advanced Intercept Point (VHF & UHF)
Power-On Message 5 Programmable Operating Profiles (PM Function)
Power-On Password Protection Mute Function
Wide/Narrow Deviation Selection Menu System for individual set-up
1750 Hz Tone Burst Function. Programmable Function Keys
Automatic Simplex Checker 8.33KHz spacing on Air Band
Auto Repeater Offset Beat Shift Function
Reverse Repeater Checker Invertible Front Panel
Key Beep On/Off ECHOLINK Sysop Mode for Node Terminal Operation
Auto Power Off & Time-Out Timer ECHOLINK Memory Dialer Channels

Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk


YAESU FTM-10E Dual Band Transceiver

FTM-10E WORLD’S FIRST DUAL-BAND MOBILE DESIGNED TO SUPPORT ALL-WEATHER OUTDOOR MOTORSPORT ACTIVITIES

The exciting newly designed FTM-10E Mobile 2m/70cm Transceiver is packed with innovative features that operators have been dreaming of for years. Great new appearance with keys and indicators that are illuminated with very bright LEDs.  The bright ocean blue negative type LCD display is easy on your eyes.

Super compact detachable front panel is ready to go with your motor vehicle!  The unique Waterproof/Dustproof Front Operation Panel is designed to support All-Weather Outdoor Activity in a manner never before possible.   Detach the front panel with one-touch release when transmitting!  The detachable front panel may be separated from the main chassis, and attached to a flat metal surface with the magnetic mounting bracket.   The microphone and PTT button are built into the front panel.

This front panel meets the IP57 standard - waterproof at 3 ft (1 m) for 30 minutes and protection against dust making the FTM-10E the perfect outdoor communications and entertainment package.

Frequency Range:
RX:
  0.5 - 1.8 MHz (AM BC)
  76 - 108 MHz (FM BC)
  108-137 MHz (Air Band)
  137-174 MHz (144 MHz HAM)
  174-222 MHz (GR1 VHF TV)
  300-420 MHz (GR2 )
  420-470 MHz (430 MHz HAM)
  470-800 MHz (GR1 UHF TV)
  800-999 MHz (GR2 USA Cellular Blocked)
TX:
  144.000 - 146.000 MHz
  430.000 - 440.000 MHz
Channel Steps: 5/6.25/8.33/(9)/10/12.5/15/20/25/50/100/200 kHz (9): AM Only

RF Power Output:
50/20/5 W (2 m)
40/20/5 W (70 cm)


Download Brochure

For price & availability, please email : sales@coastalcomms.org.uk


YAESU FT-8900R Quad Band Transceiver

Yaesu FT-8900R

Frequency range TX: 28-29.7MHz, 50-54MHz, 144-146MHz, 430-440MHz

Output 50/20/10/5W (29/50/144MHz) 35/20/10/5W (430MHz) FM (F3, F2, F1) ±5 kHz

RX: 28-29.700MHz, 50-54MHz, 108-180MHz, 320-480MHz, 700-985MHz

FM + AM airband receive

V+U/V+V/U+U Dual band reception / V+U Full duplex operation

Cross-band repeater operation / Independent dial for each band

Remote-head mounting capability

Heavy duty PA design

Huge illuminated display

50-tone CTCSS/104-code DCS tone system

ARTS (Auto-Range Transponder System)

Smart Search (Automatic memory loading system)

Hyper memory (Store and recall configuration data)

Huge 800-channel memory capacity

Versatile scanning selections

RF squelch

Internet key for instant access to WIRES  (Wide-coverage Internet Repeater Enhancement System)

1200/9600bps Packet ready

4-16 Ohms AF output impedance

2W AF output

Supply: 13.8V DC

Size 140 x 41.5 x 168mm / Weight 1kg

Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk

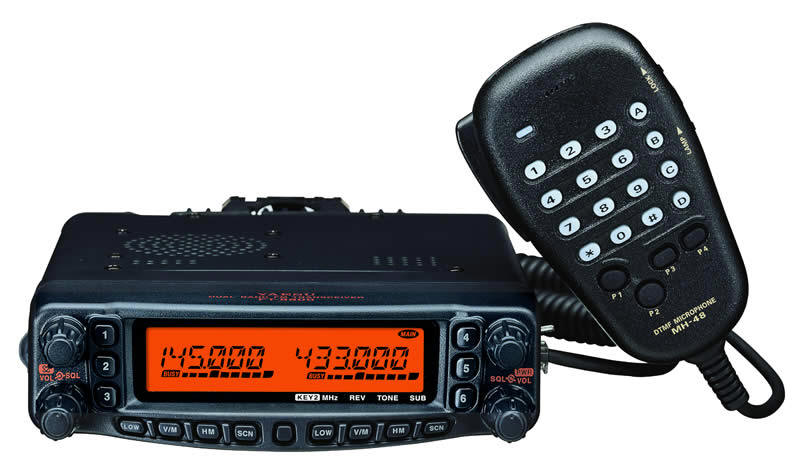

YAESU FT-8800E Dual Band Wide Receive

Yaesu FT-8800E

Tx 144 - 146MHz / 430 - 450MHz

Rx 108 - 137MHz / 320 -480MHz / 137 - 180MHz Rx / 10-999MHz

(F3) FM, (F2) 1200bps packet, (F1) 9600bps packet

RF output 144MHz: 50, 20, 10, 5W / RF output 430MHz: 35, 20, 10, 5W

Max deviation: ±5kHz

262 memories / 120 per band + home + band limits

PMS (Programmable Memory Scan)

Tuning steps: 5/10/12/12.5/15/20/25/50kHz

50 CTCSS tones

DTMF 16 memories, 16 tones each

DCS 104 tones

ARTS (Auto-Range Transponder System)

Simultaneous reception V/V, U/U & V/U

Remote front panel design

Time-out Timer

APO (Automatic Power Off)

Packet ready 1200/9600baud (optional lead)

'N' type antenna socket provided in Europe

Rx sensitivity: <0.16µV for 12dB SINAD

Squelch sensitivity: <0.1µV

Selectivity: 12/24kHz (-6/-60dB)

Audio: 2W output

Audio impedance: 4-16 Ohms (8 Ohms internal)

Supply: 13.8V DC

Current drain: Tx (VHF) 11.5A, Tx (UHF) 10A, Rx (signal present) <500mA

Case: 140 x 38 x166mm / Weight: 1.0kg

Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk


YAESU FTM-350E 2m/70cm transceiver Bluetooth GPS APRS 50/50W



The FTM-350E is a 2m/70cm transceiver from Yaesu with Bluetooth GPS APRS 50/50W.
* A Totally New Advanced Dual Band/Dual Receive Mobile Radio
* Two Separate Receivers with Individual Volume Control
* GPS / APRS® / Bluetooth® Features
* 144/430 MHz 50 W FM Dual Band Transceiver
* DTMF Microphone Included
* User-selectable multi-colour dot matrix display (detachable from main body)




Lots of Reliable Power Output 50 Watts of Reliable Power on both 2 m and 70 cm. Yaesu's renowned high quality Die Cast Aluminium Chassis design allows stable continuous high output power operation when you need it most.

Fantastic Large and Flexible LCD Display Incredibly flexible Dual Band Display. You can easily set your own individual preference for Dual Receive and Full-Duplex operation. 5.2"x1.6" (130x40 mm) Large dot matrix (264x64 dots) LCD display for comfortable viewing - night or day.
Numerous useful displays are available with the optional FGPS-1 GPS Receiver and Antenna. (Optional FGPS-2 External GPS Receiver and Antenna + CT-133 (cable) + CT-136 (adapter) are also available.)
Choose your favourite LCD display colour - 8 vibrant Colour Options!

Loads of APRS® Flexibility Complete with TNC and compatible with various APRS® information and functions - Receive WX info from other APRS® weather stations, exchange messages (max 67 characters using the APRS® function, etc.

Dual Speakers on Control Head Built-in Dual Speakers on the rear of the Control Head with Independent Volume Controls for maximum flexibility

Control Head Separation with Ease The Display Control Head is designed for easy separation from the main RF Power Unit - 10 foot control cable included. Optional 20 foot control cable available.

Band Scope High-speed Band Scope included for rapidly checking band activity.

Bluetooth® Capabilities The optional Bluetooth Unit (BU-1) provides hands-free radio operation with our Optional Bluetooth headset BH-1A (monaural) or BH-2A (Stereo).

SmartBeaconing™ Included SmartBeaconing™ from HamHUD Nichetronix is able to modify its own beacon rate in response to the motion of the vehicle. Since the APRS network has limited bandwidth, SmartBeaconing™ transmits an optimal amount of position information with a minimal amount of QRM to other network users - making FTM-350R users some of the most "efficient" on the network.
Read more about this very useful feature at http://www.hamhud.net/hh2/smartbeacon.html

Cross-Band Repeat Capability For emergency work, or to extend the range of a hand-held unit, the FTM-350R includes Cross-Band Repeat capability.

Huge Memory Channel Management Capability! 500 Independent memory channels with memory name tag function (up to 8 characters) for each L and R band (1000 channels total), + 9 PMS (Programmable Band Limit Memory Scan) channels for each L and R band (18 channels in total), + a rewritable preferred channel for each L and R band, + 31 channels specifically allocated for the Smart Search function

Special Features when communicating with FTM-350R & VX-8R/DR Transceivers Able to display your friends APRS® stations (FTM-350R and VX-8R / DR) directions, distances and other information in relation to your location.

Packet Compatible 1200 / 9600 bps packet port (8-pin mini DIN)

Wideband Receive
L-band: 0.5 MHz – 1.8 MHz (AM Broadcast band)
76 MHz – 108 MHz (FM Broadcast band)
108 MHz–250 MHz / 300–1000MHz
R-band: Amateur R

Listen to FM Broadcast Stations in Stereo Built-in stereo decoder for FM Broadcast: Listen to FM Broadcast in Stereo with dual speakers on the rear of the control head!

Optional FPR-1 Monitor Unit receives your transmission out to about 1,000 ft (300 m) depending on transmit power and other conditions. Give to others to hear your transmissions during emergencies, special events, and so many other operations so that they can follow the situation.

DTMF Microphone Included The front panel Built-in Microphone activates PTT transmission. A MH-48A6JA / conventional hand microphone with DTMF is also included with the radio.

DTMF Autodial (Memory) with 16 digits/9 memories.
"Line In" input permits playing your favourite stereo music from other devices.

Barometric Pressure Sensor Built-in Barometric Pressure Sensor; the radio can monitor and display your altitude (with optional GPS unit) and pressure



Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk

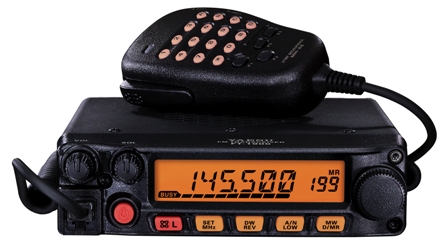

YAESU FT-1900E Yaesu 2m 55W Mobile Transceiver



The FT-1900E is a ruggedly-built, high-performance 55-Watt 2m mobile FM transceiver with outstanding receiver performance and crisp, clean audio. Optimized for ease of operation day or night, the FT-1900E is one tough radio for operating in a tough world! 3 Watts of pristine audio. Large LCD and 200 memories.

55 Watts of Power Output The FT-1900E provides a hefty 55 Watts of power output, with "low power" settings of 25, 10, and 5 Watts, for situations where full power is not required.



Large LCD Display The large 6 digit backlit LCD on the FT-1900E ensure excellent visibility

Loud Audio with Internal Speaker The FT-1900E packs 3W BIG watts of Loud Audio with its own Internal Speaker for those noisy environments.

Extended Receiver Coverage The FT-1900E provides receiver coverage of 136-174 MHz, so you can listen in on a wide variety of commercial, military, public safety, and marine communications.

Illuminated Microphone with Keyboard Frequency Entry The supplied MH-48a6j DTMF Microphone is illuminated for ease of nighttime use, and you may enter operating frequencies directly from the keypad. What's more, memory channels may also be recalled directly via the keypad.

200 Memory channels with Alpha-numeric Labelling The FT-1900's extensive memory system includes 200 regular memories, ten pairs of band-limit memories, 8 memory banks, and a one-touch "Home" channel. Memory channels store repeater offset information, as well as CTCSS or DCS data, and can have a six-character label appended, for quick channel recognition. And the memories may be allocated into as many as eight memory banks, for more efficient scanning.

Programmable Four user-programmable "soft" keys are provided on the MH-48a6j microphone, allowing you to bring often-used Menu items, or front panel key functions, to your fingertips.

Built-in CTCSS and DCS Encoder/Decoder Circuits The FT-1900E includes both CTCSS and DCS Encoder/Decoder circuitry, with Reverse CTCSS Decoding also available, to mute your receiver when a particular tone is received (instead of opening your squelch). And you can encode CTCSS and decode DCS, or vice versa, too, if your application requires it.

Adjustable Mic Gain and Wide/Narrow Deviation and RX Bandwidth The microphone gain for the FT-1900R's transmitter is adjustable, so you can optimize it for your voice level as well as background noise in your operating location. And for operation in crowded channel environments, the TX deviation and RX bandwidth may both be reduced via the Menu.

Automatic Repeater Shift (ARS), Automatic Power-Off (APO), and BCLO (Busy Channel Lock-Out)
ARS: Automatically selects the typical repeater shift used in your country, based on the current operating frequency.
APO: Automatically turns power off after a user-defined time period, to prevent you from running down your car battery if you forget to turn your rig off.
BCLO: Prevents you from transmitting on an occupied frequency (especially valuable during Tone Squelch or DCS operation).

CW Trainer You can practice your Morse Code recognition, using this novel trainer that sends you five-character code groups, with variable speed and instant feedback as to the correct characters sent to you.

Security Password to Prevent Unauthorized Use A defeatable (by the owner) Security Password system is provided for the FT-1900E, so you can limit operational access to yourself and any other users (if any) informed of the password for the transceiver.

Easy Access to YAESU's Renowned WiRES-II™ Internet Linking Nodes A front panel key provides instant access to WiRES-II nodes. More information about WiRES, Yaesu's exciting and fun way to communicate via Amateur Radio AND the Internet, may be found at the WiRES-II Web site: http://www.vxstd.com/en/wiresinfo-en

Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk

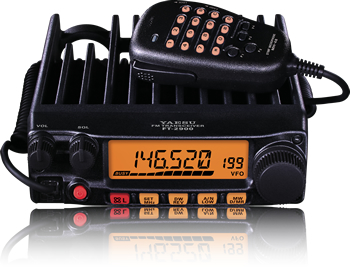

YAESU FT-2900E 2m 75W Mobile Transceiver

FT-2900E 75 Watt Heavy-Duty 144 MHz FM Transceiver. High power output with No Cooling Fan Needed, a huge, easy-to-read display, and one-touch WIRES™ Internet Linking Access capability are yours with the rugged new FT-2900E!

75 Watts Power Output 75 Watts of Solid RF Power with No Cooling Fan Needed! Four selectable power output levels are provided: 75/25/10/5 Watts. The power selection may be stored into memory, allowing you to conserve power while using strong local repeaters.






Large LCD Display The large 6 digit backlit LCD on the FT-2900E ensure excellent visibility

Loud Audio with Internal Speaker The FT-2900E packs 3W BIG watts of Loud Audio with its own Internal Speaker for those noisy environments.

Excellent Receiver Performance The FT-2900E’s receiver front end features Yaesu’s renowned Advanced Track Tuning RF input filtering, which affords outstanding protection from Intermodulation distortion.

CTCSS and DCS Encode/Decode Built In For easy repeater access, or silent monitoring of busy channels, both CTCSS and DCS (Digital Code Squelch) Encoder/Decoder circuits are built in. CTCSS and DCS configuration data may be stored independently in each memory channel. A “Split Tone” mode also allows operation on systems where CTCSS and DCS are used separately on the repeater uplink/downlink.

Extensive Memory System The FT-2900R provides a total of 221 memory channels, including 200 “regular” memories, ten pairs of band-limit memories, and an instant-recall “Home” channel you can dedicate to a frequently-used repeater or simplex frequency. Memories can store repeater shift information, CTCSS/DCS data, power output level, scanning status (“Skip”), and Alpha-Numeric labels.

Alpha-Numeric Channel Display Memory channels may be displayed either with the channel frequency or a personalized Alpha-Numeric label, for easy channel recognition. Up to six letters, characters, or numbers may be used for labeling channels.

WIRES Internet Linking Access Feature The FT-2900R includes a conveniently-located “Internet” key, for quick access to Internet-linked repeater systems. Internet repeater linking allows you to use your FT-2800M to talk to other Amateurs throughout the world, with outstanding voice signal quality. The “Internet” key may be configured to send either a single DTMF digit, or a DTMF string, for operation on a WIRES™ (Wide-Coverage Internet Repeater Enhancement System) repeater, or on other Internet-linked repeaters using DTMF tone access. For more information on WIRES™, please visit our Web site (www.yaesu.com), or send an e-mail to WIRES@vxstdusa.com



MH-48A6J DTMF Direct Access Microphone The backlit MH-48A6J microphone allows direct keypad frequency entry, or keypad memory channel recall. On transmit, the MH-48A6J allows manual entry of DTMF tones for autopatch use, and the FT-2900E also includes a nine-memory, 16-digit DTMF Autodialer. Four user-programmable “soft” keys on the microphone may be programmed for easy control of a number of different features, and the keys replicate the functions of the keys on the front panel of the transceiver, for maximum convenience while driving.

Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk

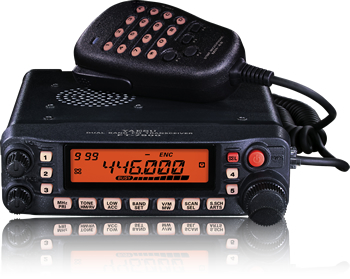

YAESU FT-7900E 2m/70cm 50/40W FM Mobile Transceiver



2m / 70 cm Dual Band FM Transceiver with exceptionally wide receiver coverage.

The FT-7900E provides 50 Watts of power on the 144 MHz band, and 40 Watts on the 430 MHz, and is designed for simplicity of operation along with high performance in the receiver section. The FT-7900E is ideal for the active Ham who has a need for simplex, repeater, or FM satellite operation on both bands, but without the complication of cross-band repeat capability, which is available on our FT-8800E and FT-8900R models.




High Power Output Boasting a big 50 Watts of power output on 144 MHz, and 40 Watts on 430 MHz, the FT-7900R also includes provision for three lower power levels, so you never have to use more power than you really need. The power level is stored in regular and Hyper Memory registers, too

Wide Receiver Frequency Coverage The FT-7900R provides receiver coverage from 108 to 520 MHz, and 700 to 999.99 MHz (cellular blocked), so you have available a wide range of monitoring excitement, including AM Aircraft, Public Safety, Government, Business, and, of course, Amateur communications. The synthesizer steps appropriate for the operating band are automatically selected, too!

Large LCD Display The large backlit LCD on the FT-7900R ensure excellent visibility

One-Touch Five front panel keys allow complete transceiver configuration status to be stored for convenient one-touch recall. So you can set up favourite frequencies in each operating band, including the receive-only bands, and then recall them with a single touch of a button!

Over 1000 Memory Channels The FT-7900R’s incredible memory channel capacity includes registers for over 1000 channels, each capable of storing a 6-character Alpha-Numeric label. And the memories may be stored in any of the 20 available memory groups; a particular memory channel may also be stored in multiple groups, if desired.

YSK-7800 Remote Mounting Kit (option) Using the optional YSK-7800 Separation Kit, which contains both cabling and a bracket for the remote front panel, you can mount the FT-7900R’s front panel on the vehicle’s dash board, then stow the radio’s body under the seat or in some other convenient, out-of-the-way location. The cables are approximately 20 feet (6 m) in length.

WiRES™ Internet Linking Capability The FT-7900R’s DTMF signalling capability includes provision for easy access to Yaesu’s WIRES™ (Wide-coverage Internet Repeater Enhancement System) Internet linking nodes, as well as other linking systems that require a DTMF string for access.

Back to Top of Page

For price & availability, please email : sales@coastalcomms.org.uk


Prices and specifications are correct at date of publication but subject to availability or change without notice. Photos for illustrative purposes only - actual items may differ from photo.

  Page copy protected against web site content infringement by Copyscape

© 2013 Coastal Communications UK - All rights reserved - Webmaster M0GWE
