second-hand equipment
Please phone or call in for our
latest selection of second hand equipment & prices.
To purchase any item from our
Second Hand section, please phone to confirm availability and payment options.
(all photos are of similar
equipment unless stated otherwise)
Marine
IC-M127
EURO Marine VHF Transceiver
IC-M127 Specifications
This information is taken directly off
of the ICOM IC-M127 brochure.
General
Frequency Range: Transmit: 156.025
-157.425 MHz; Receive: 156.025 - 163.275 MHz
Usable Channels: All U.S.A.,
International and Canadian channels; plus 10 weather channels
Mode: FM(16K0G3E); DSC (16K0G2B; with
optional UX-130)
Power Supply Requirement: 13.8 V DC
+/-15% (negative ground)
Current Drain (at 13.8 V DC):
Transmit: 6.3 (high); 2.0 A (low)
Receive: 1.5 A (max. audio); 0.5 A
(standby)
Usable Temperature Range: -20°C~ to
+60°C (-4°F to +140°F)
Frequency Stability: +/-5 ppm
Antenna Connector: 50 ohms (SO-239)
Dimensions: 229(W) x 78(H) x 220 UK p&p £14
mm; 9(W) x 3.1(H) x 8.7 UK p&p £14 in (projections not included)
Weight: 2.5 kg; 5.5 lb
Transmitter
Output Power (at 13.8 V): 25 W (high);
1 W (low)
Modulation System: Variable reactance
phase modulation
Spurious Emissions: Less than -70 dB
Max. Freq. Deviation: +/-5 kHz
Microphone Impedance: 600 ohms
Receiver
Receive System: Double conversion
superheterodyne
Intermediate Frequencies: 1st: 21.8
MHz; 2nd: 455 kHz
Sensitivity: 0.25µV for 12 dB SINAD
(typical)
Squelch Sensitivity: 0.32 µV
(threshold), 1.0 µV (tight)
Adjacent Channel Selectivity: 750 dB
Spurious Response Rejection Ratio: 75
dB
Intermodulation Rejection Ratio: 75 dB
Audio Output Power: More than 5 W at
10% distortion with a 4 ohms load (10 W for the hailer function)
Audio Output Impedance: 4 ohms
S/H Price: £195.00
(library photo of item/s for
sale)
Amateur
IC-725 HF Transceiver
(library photo of item/s for
sale)
Frequency range:
TX: 10-160 m
RX: 0.5-30 MHz
Mode:
SSB/CW/AM/FM
RF Power output:
100 W
Sensitivity:
AM: <2 uV (10 dB S/N)
FM: <0.5 uV (12 dB SINAD)
SSB/CW: <0.15 uV (10 dB S/N)
Selectivity:
AM: >6 KHz (-6 dB), <20 KHz (-60 dB)
FM: >15 KHz (-6 dB), <30 KHz (-60 dB)
SSB/CW: >2.3 KHz (-6 dB), <4 KHz (-60 dB)
Voltage:
13.8 VDC
Current drain:
RX: 1.2-1.5 A
TX: Max 20 A
Impedance:
50 ohms, SO-239
Dimensions (W*H*D):
241*94*239 mm
Weight:
4.7 Kg
S/H Price: £295.00
Amateur

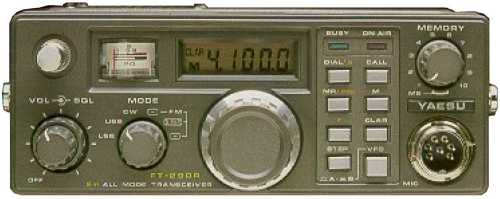

Yaesu FT-290R
2m Multimode Transceiver
(library photo of item/s for
sale)
Frequency range:
144-146 MHz (Europe)
144-148 MHz (USA)
Mode:
FM/SSB/CW
RF Power output:
Hi: 2.5 W
Lo: 0.5 W
Voltage:
8.5-15.2 VDC
Current drain:
RX: 70 mA
TX: Max 800 mA
Impedance:
50 ohms, SO-239
Dimensions (W*H*D):
150*58*195 mm
Weight:
1.3 Kg (without batteries)
Memories:
10 memories
S/H Price: £150.00
HK-705 Straight Key
"Little Brother" of the famous HK-708, the Model HK-705 is smaller and lighter.
The design is virtually identical to the 708, but the 705 is only 5" inches long
by 2-3/8" wide and weighs a mere 4.25 Oz. Since it has the same
"knob-over-base" design as the 708, you can place it on your desk and use it
without screwing it down or holding it. Perfect for mobile and portable
operation, it's large enough that you can use it comfortably, but small enough
to fit in a pocket
(library photo of item/s for
sale)
S/H Price: £20.00
ALL Second hand Equipment Fully
Serviced & Guaranteed For 3 Months from date of purchase.
Call Back Here Soon To Check Out Other Great Deals On Second Hand Equipment
Updated:
27/06/2009 13:01
