Alan branded products
represent the very latest in innovation and design in the PMR446 market.
First introduced in the
late 90's, they have continually changed and adapted their products to
offer the very latest technological and design features. As a result of
this, the brand has gained an excellent reputation in such niche markets
as motorcycle training, soft air skirmishing, bike to bike communications
and off roading.
Coastal Communications
UK is pleased to recommend the Alan range of products.

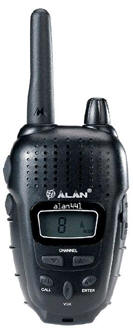

Alan441Licence
free handheld transceivers.
Multifunctional Backlit Display
VOX For Hands Free Conversations
Auto Power Save
Baby-Sitter
Working With Dry Cells or Rechargeable "AAA"
Batteries!

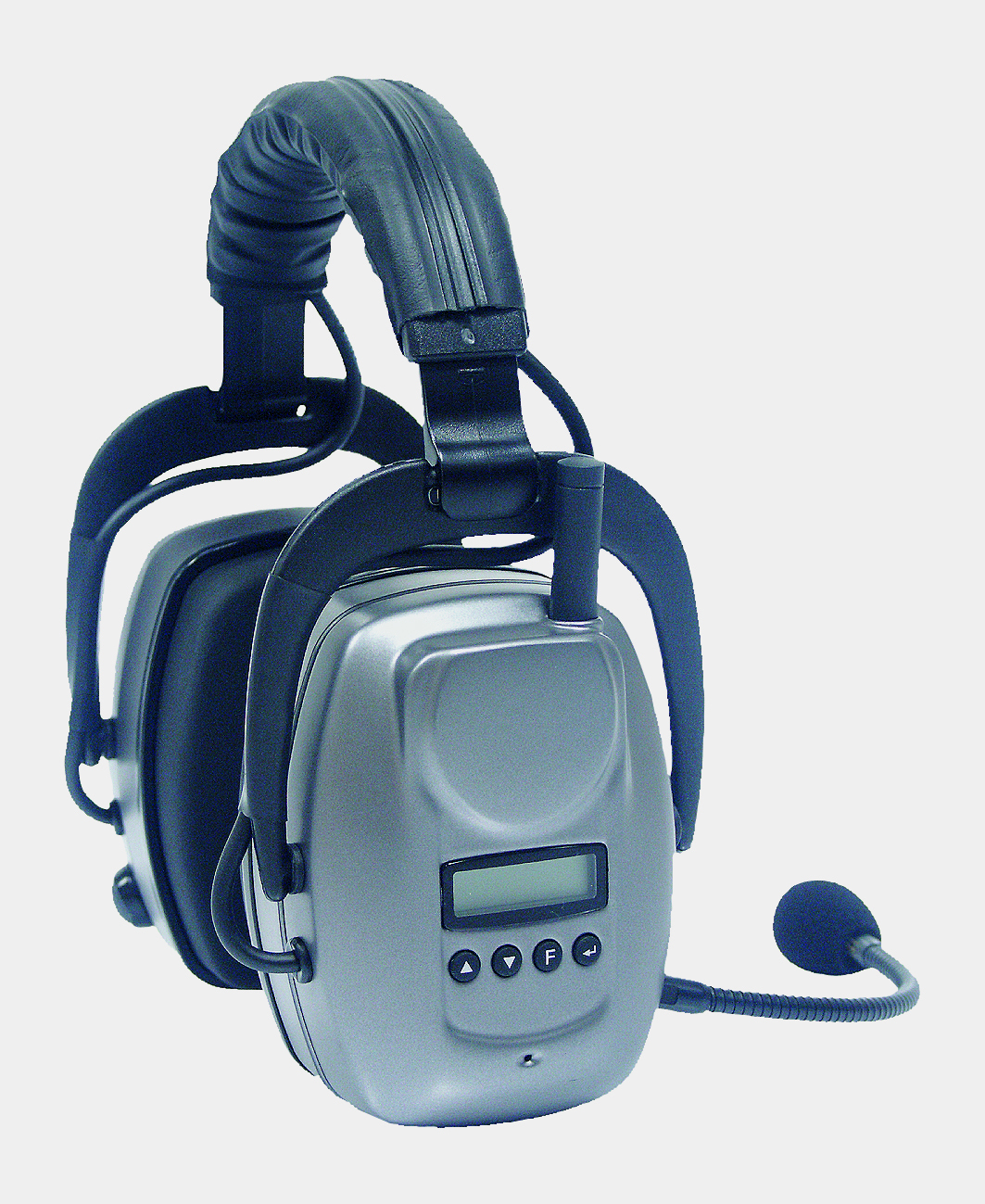

The ProRadio FM Radio has an integrated PMR446
radio which operates on the usual 8 channels (+ CTCSS channels) and also
receives FM radio. On top of all this, it is also equipped with an active sound
barrier with electronic level restriction at 85dB. It also incorporates a noise
cancelling microphone which operates either on VOX or PTT.
The ear-defender ear shells offer a noise
reduction of approx 26dB.
8 Channels
38 CTCSS privacy tones per channel
Backlit LCD display
Hand built in Germany
Dual watch
Scan function
Roger beep
Power save mode
Sidetone on transmission
VOX
Rechargeable battery included
Adjustable boom microphone
Ideal for comms in high noise
areas such as pit lanes, shooting ranges and factories
Looking for a cheaper way to stay in touch with friends and
family, but not keen on traditional 2-way radio designs? Then the Alan 777 is
definitely worth a second look!
With features you'd usually expect to see on a mobile phone
and small & stylish design, this little radio is ideal for a range of leisure
and business applications. (Great for use in schools, offices and trade shows!)
Bi-band PMR446 and LPD radio (8 PMR446 & 69 LPD channels plus 38
CTCSS tones per each channel)
Available in black and red
Vibrating call alert
5 selectable call tones
Blue backlit LCD display
SCAN function
2 level adjustable VOX
Supplied in a twin pack with Li-Ion battery packs, desktop
charger & belt clips
The
Alan 456 series is the best selling PMR446/intercom combination in Europe.
Its vast range of features
make it ideal for bike to bike as well as rider to pillion
communications. As it operates on the standard PMR446 frequency, it can be used
to talk to any other PMR446 radio & with 968 channel combinations you're
virtually guaranteed no unwanted interruptions.
Intercom & PMR446 radio combination
8 PMR446 channels + 30 CTCSS & 83 DCS tones per each
channel. (Over 900 channels available)
68 hour autonomy with alkaline batteries
12 level adjustable VOX
Available in Black or Silver - let us know your choice
during the checkout process

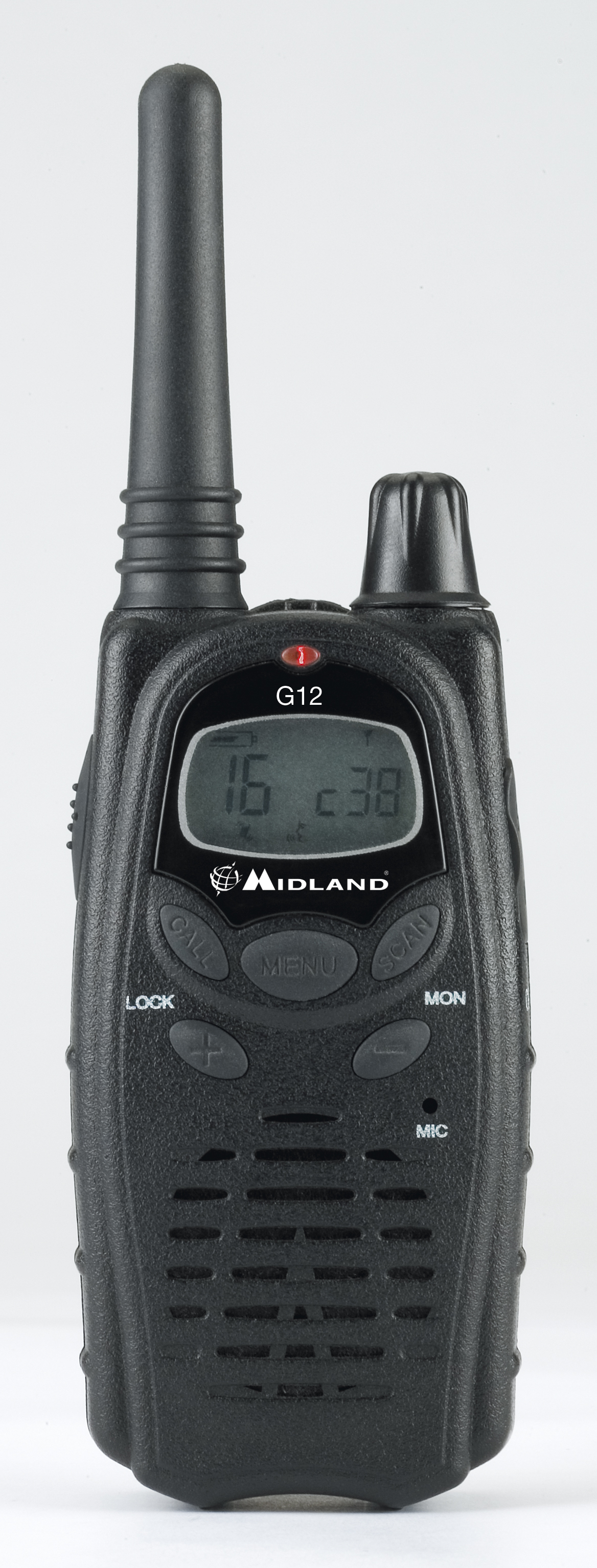

The Midland G12 is a high quality transceiver that stands out
from the competition thanks to its small size, wide range of features & sturdy
mechanical chassis. It is splash proof, dust resistant and is ideal for bike to
bike use in all weather.
Added to all
this, the radio also benefits from a huge 1800Mah battery pack, vibrating call
alert, over 1200 channel combinations and much more.
The G12 can also be used with a vast range of headsets and
intercom kits.
Signal strength indicator & LED status
indicator
Vibrating call alert and 10 selectable call tone melodies
The Midland G7 kit is great starting point for
anyone looking for reliable bike to bike communications.
As well as boasting fantastic build quality in
the shape of a sturdy chassis and great value for money, the G7 also operates on
both PMR446 and LPD frequencies, making it the first leisure radio that can be
used in every country of the EU.
VIBRACALL function
LCD display with backlight
Low battery indicator
Auto power save
38 CTCSS tones in TX and RX
PMR446 and LPD bands
CALL button with 3 tones selectable
Automatic squelch adjustment
Buttons for channel selection
SCAN function
Keypad lock
Hi/Lo power selection
Roger beep on/off
VOX for hands free communications
Jack for ext. mic / ext. speaker / battery pack recharge
Supplied in twin pack with belt clips, desktop charger,
NiMH battery packs
Size: 58(L) x 122(H) x 34(D)mm Weight: 123gr (w/o battery
pack)
~
Please e-mail or call for latest base, mobile & hand-held radios
~

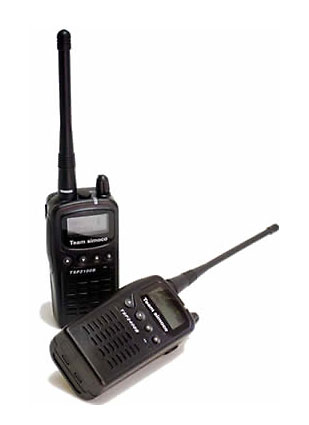

TSP2000
Series
Large Size Graphic LCD
Display (32 Characters)
Wide Band Coverage
Key-Lock Function for security
128 Channels & 16 Groups
DTMF & 5-Tone Caller ID Display
Password Function
CTCSS/DCS Encode and Decode
Ni-MH/Li-ion Dual Desktop Charger
VOX Hands-Free (External)
Temperature Compensation Function
Dual SCAN
TOT/BCLO/PSC
111 mm Compact Design
Specifications
TSP-2100 A/B
TSP-2400 A/B
Frequency Range
136-162 / 146-174 MHz
400-440 / 430-470 MHz
Channels
128 Ch & 16 Groups
Channel Spacing
12.5 kHz or 25 kHz selectable in 5 Hz or 6.25 kHz steps
Antenna Impedance
Helical Antenna , 50W
WHIP Antenna, 50W
Battery Voltage
7.5V DC (Ni-MH /
Li-ion)
Power Consumption
TX (5.0W) less than
1.8A
RX (1.0W) less than 300mA
Operating Temperature
-30 ~ 60°C
Size
55mm(W) x 38mm(D) x
111mm(H) battery included
Weight
285g battery
included
Battery Life
>9.5 hours typical,
high transmit power (1700 Li-ion battery pack)
Power Output
Hi 5W / Lo 1W
Hi 4W / Lo 1W
TSF2000
Series
TSF2025
TSF2025i
TSF2100
The TSF2025
Series is the 25W variant of the TSF2000 range of advanced Base Stations for
Analogue Communications Systems.
The TSF2025i is the 25W variant of the TSF2000 range of advanced Base
Stations for Analogue Communications Systems which includes an integral
Power Supply Unit.
The TSF2100
Series is the 100W variant of the TSF2000 range of advanced Base Stations
for Analogue Communications Systems.
Specifications
Channel Bandwidth
12.5kHz(11K0F3EJN), 20kHz(14K0F3EJN) or 25kHz (16K0F3EJN) selectable per
channel
Modulation Freq.
F3E
(voice) pre-emphasised/fl at, or FFSK data (1200 or 2400bps)
-25C to
+55C Operating (Full Spec.) -40C to +80C Storage
Antenna Connect
2 x 50Ω
female N-type
Environmental IP20
ingress protection
Humidity
<95% non-condensing
Inputs/Outputs
Engineers
handset (RJ45 front panel)
2 x 2/4 wire line/audio interfaces (screw terminal)
2x line audio connections + E&M signalling (RJ45)
Programmable facilities connector (37 way D-type)
RS232 serial connection (9 way D)
Ethernet IP interface (10baseT-RJ45)
Power connector (5 Pin, 25 D-shell)
Supply Voltage
10.8 to
16.2V DC negative earth (13.65V nominal)
Type Approval
CE Type
approvals to R&TTE Directive 1999/05/EC:
EN300-086 Radio, EN300-113 Data, EN301-489-05 EMC, EN300-219 Sig.
EN60950 safety, TBR15 and 17-line
Dimensions
44mm(1U)
High x 433mm Wide x 430mm Deep (excluding cables)
~ (In Wall Mount) 125mm High x 465mm Wide x 470mm Deep
Power Requirement
24V + 12V DC Nominal for 25W
(additional 24V needed for 100W)
Weight
6.95 kg
Transmit Power
1W to 100W, selectable per channel
PLEASE PHONE OR
CALL IN FOR A QUOTATION BASED ON YOUR REQUIREMENTS
01255 474 292
All our prices include VAT at 17.5%
