scanners & receivers
Listen To The World Of Communications.
Please note that at present there are no
scanners or receivers in the UK that are capable of decoding digital police
transmissions (Tetra).
As soon as these become available we will publish details
here.
|
|
 |
|

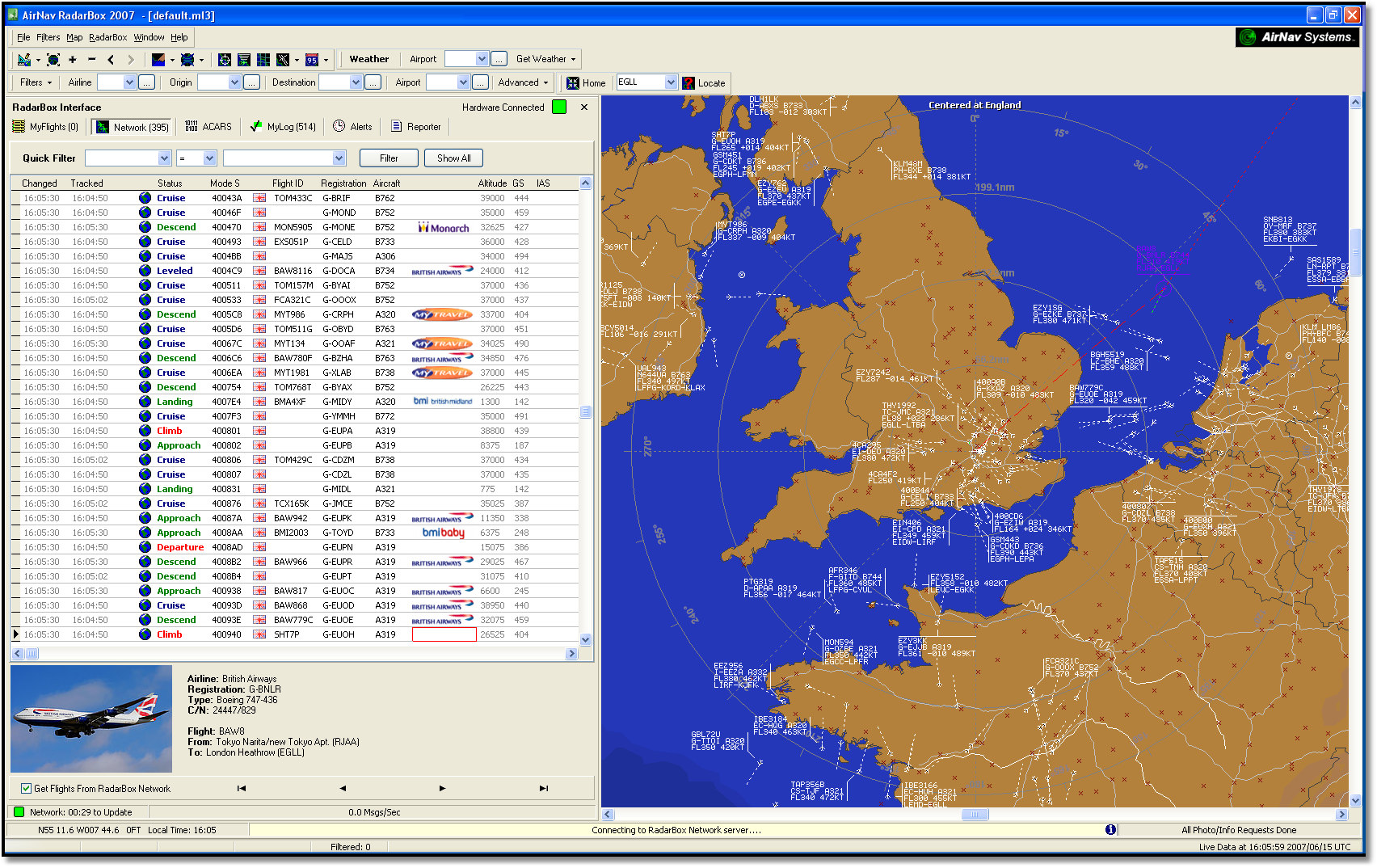

AirNav RadarBox is the closest you can be to real world
aviation without leaving your chair thanks to next generation Radar
decoding. By decoding ADS-B (Automatic Dependent Surveillance Broadcast)
radar signals, you will be able to see on your computer what
real Air Traffic Controllers see on their screens in Real-Time.
Flight number, aircraft type, altitude, heading, speed are all updated
each second. Included is the award winning software interface
developed by the world's leader in flight tracking and monitoring
solutions, AirNav Systems.
|
|
Price: £399.95 (C) |
Close Call™ RF Capture facility
- 'listens' for nearby or 'close' transmissions
Uniden UBC3500XLT Handheld Scanner
The new UBC3500XLT is
the new flagship in handheld scanners, with the most comprehensive list of
features ever offered by bearcat. They include 2500 dynamic
channels, close call, quick keys, CTCSS and DCS squelch
modes, repeater reverse, dropout delay, channel alert,
memory check, scan and search operation, custom alerts,
automatic channel steps, quick recall, text tagging, data skip,
memory backup, pc control and cloning, and much more.
Freq: 25-512Mhz - 806 - 1300 Mhz
Memories: 2500 Dynamic channels
10 Programmable search banks
3 Selectable Band plans
Air band search - pre programmed
Close Call™ RF Capture facility
Close Call - do not disturb function
Quick Keys
Frequency Steps : 5/6.25/7.5/10/12.5/15/20/15/50/100Khz and 8.33 kHz for
Air band.
CTCSS and DCS Squelch
Lockout Function
Alarm function
Repeater function
Automatic Channel Steps
Scan delay Function
Custom Screen
Quick Recall
Alpha-numeric Tags
Data Skip
Auto Store
Batteries save function
Cloning Function
SMA-Antenna
Channel Hold Function
AGC-Function
Display Contrast ControlSize : 61w x 31d x
131h mm
|
The
scanner is supplied with :
wrist strap, AC adaptor, batteries, belt clip,
BNC/SMA adaptor, owners manual.
|
Price: £149.95 (C) |
|
UNIDEN UBC92XLT
AM / NFM Handheld Scanner
200 Memories
25 - 87.26 / 108 - 136.98 / 138 - 157.98 / 158 - 173.99 / 406 - 512
MHz
Airband 12.5/8.33kHz
Backlit display
Direct channel access
Compact design
With "Close Call"™
|
Price: £99.95 (C) |
|

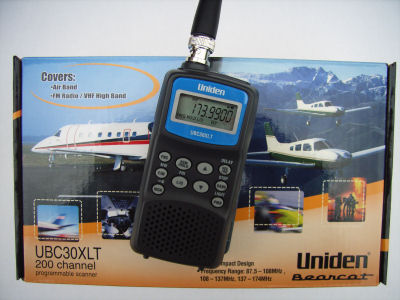

UBC30XLT
Air Band / FM Radio - VHF
High Band
- Frequency coverage and Mode: 87.5-107.9MHz WFM,
108-136.9875MHz AM, 137-173.99MHz NFM
- Frequency Steps: 5kHz, 6.25kHz, 8.33kHz, 10kHz, 12.5kHz,
15kHz, 20kHz, 25kHz, 50kHz and 100kHz
- Modes: AM, FM, WFM
- Memories: 200
- Scanning features: Priority, Lockout, Search Skip,
programmable delay
- Scan rate: 25 channels per second
- Priority channel sampling rate: 2 seconds
- Backlit display
- IF’s 51.5MHz, 450kHz (not WFM)
- Audio output: 400mW max
- Power requirement: 3 x AA alkaline or NiMh batteries (not
supplied)
- Squelched power consumption: 36mA typical
Antenna socket: BNC
- Earphone socket: 3.5mm
|
Price: £69.95 (C) |
|

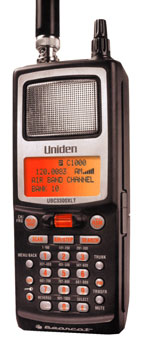

UBC-3300XLT
UBC-780XLT

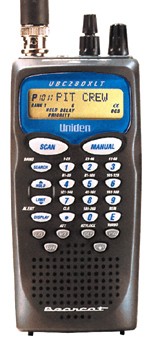

UBC-280XLT


PSR-214
FR 100

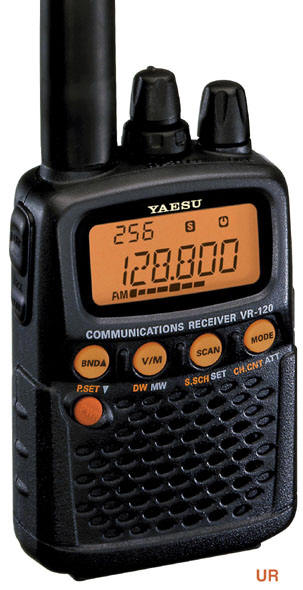

YAESU VR-120D
|
Frequency
Range:
|
100 kHz ~
1299.995 MHz |
|
Frequency
Channel Steps:
|
5,6.25,9,10,12.5,15,20,25,30,50 and 100 kHz. |
|
Receiving
Modes:
|
AM/FM-N/FM-W |
|
Memories:
|
640 (ten banks
of 64) |
|
Sensitivity:
|
100 kHz ~
5MHz, AM 1.5 uV (10 dB S/N) |
|
|
5 MHz ~ 160
MHz, AM 0.6 uV (-4.4 dB), NFM 0.3uV (-10.4), WFM 1.0uV (-1 dB)
|
|
|
160 MHz ~ 370
MHz, AM 0.6 uV (-4.4 dB), NFM 0.3 uV (-10.4 dB), WFM 0.6 uV (-4.4 dB)
|
|
|
370 MHz ~ 520
MHz, NFM 0.3uV (-10.4 dB), WFM 1.0 uV (-0 dB) |
|
|
520 MHz ~
1299.995 MHz, NFM 0.7 uV (-3.0 dB), WFM 3.0 uV (9.5 dB) |
|
Current
Drain:
|
95 mA (at 50mW
audio 8 Ohms) |
| |
15 mA (1:4
battery Save On) |
|
|
55 mA
(Squelched, Save Off) |
|
Battery
Voltage:
|
2.2 ~ 3.5 VDC
(nominal 3V) |
|
Battery
Size:
|
2 AA cells
(not supplied) |
|
External DC
Voltage:
|
5.5-10 VDC
|
|
Operating
Temperature Range:
|
+14°F ~ +122°F
(-10°C ~ +50°C) |
|
Antenna
Impedance:
|
50 Ohms
|
|
Antenna
Connector Type:
|
BNC |
|
Speaker
Impedance:
|
8 Ohms
|
|
Audio Output
Power:
|
80 mW 8 ohms |
|
Case Size:
|
2.3(W) x
3.4(H) x 1(D) in (58 x 85 x 26 mm) w/o antenna/knobs |
|
Weight:
|
195 g
(including antenna/battery) |
- Wide Frequency Coverage
- 640 Alpha Memories
- Triple Conversion
- Backlit LCD
- BNC Antenna
- Attenuator
|
- Mini Audio Jack
- Manual Tuning Knob
- S-Meter Buzzer
- Dual Watch
- Low Battery Indicator
- AM Bar Antenna
|
|
Price: £139.95 (C) |
|

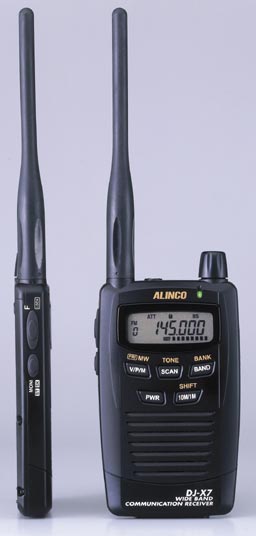

Alinco DJ-X7E
Catch the action on many interesting bands, or just enjoy your
favourite music and news on radio or TV with a receiver that fits in your shirt
pocket ! When you hear the amazing audio quality you might think you are
listening to a high quality desktop scanning receiver. But the DJ-X7 gives you
all those capabilities in a size and weight that makes it easy to take almost
anywhere. Leading the way in miniature electronics technology with its
revolutionary "credit card" size transceivers and multi mode scanning receivers,
Alinco sets a new standard for excellence with the DJ-X7E.
Features:
Frequency range 0.1 - 1300Mhz Continuous Coverage, Modes triple
conversion AM/FM double conversion WFM, mode selectable regardless
of the frequency range, 1000 Memory Channels, easy to program with free
downloadable software (optional cable required), Five operating modes, Preset,
Programmed, Memory, VFO, and Tone Scan, Lithium Ion Battery pack, Three
different antenna modes-earphone antenna, internal bar antenna, and external SMA
antenna, an optional external base antenna can also be used. 39 tone squelch.
Attenuator (approx20db), Auto Power Off, Key Touch Beep (selectable), Battery
Save, Priority Receive, Monitor/Mute, Memory Save, Cable Clone, KeyLock, Pager
Function Alert, Standard Adaptor charges the Lithium Ion Battery, and operates
with AC power ( listen while charging ), Illuminated LCD, Analogue
inversion scrambler decoder, (E Version).
Supplied with: Instruction
manual, Li-Ion Battery Pack, Mains Adapter, SMA Whip Antenna, Antenna Cap,
Curl-Cable Earphone.
Optional Accessories: Soft
Case, Straight Cable Earphone, 12VDC Cable, PC Interface Cable.
-
Receiver range:
0.100 - 1299.995MHz continuous
(USA T-version cellular-band blocked 824.000-849.995MHz,
869.000-894.995MHz)
-
Mode: A3E (AM) /
F3E (FM, WFM)
-
Antenna Impedance:
50 ohms unbalanced / SMA-port
-
Operating battery
voltage: DC3.7V (external DC port DC3.7V-6.0V)
-
Current consumption:
Approx. 90mA average/Approx. 65mA stand-by/Approx 22mA battery-save on
-
Frequency stability:
-7 to +3ppm at -10c to +60c
-
Dimension without
projection: 58(W) x 96(H)
x 14.5(D) mm
-
Weight:103g
antenna/battery inclusive
-
Receiver: Triple-conv.
Super-heterodyne (NFM, AM) / Double-conv. Super-heterodyne (WFM)
1st IF: 243.95MHz
2nd IF: 39.15MHz (NFM, AM) 10.70MHz (WFM)
3rd IF: 450KHz (NFM, AM)
-
Sensitivity:
Typical values in the bands, not the minimum guaranteed values
FM / 30 to 470MHz : 12dBu (0.25uV), 470MHz or higher 6dBu (0.5uV)
12dBSINAD
WFM / 76-470MHz : 2dBu (0.8uV), 470MHz or higher 9dBu (2.8uV)
12dBSINAD
AM / 0.1-50MHz : 0dBu (1.0uV), 50MHz 8dBu (0.4uV) 10dBS/N
-
Selectivity: 6dB
12kHz or more, 60dB 35kHz or less (NFM, AM), 6dB 130kHz or more, 60dB
300kHz or more (WFM)
-
Audio Output power:
Max 100mW or more (8ohms)
-
Typical operating time:
Approx. 19 hours with EBP58N (RX 1: Stand-by 4 BS-on)
|
AM/FM and TV audio bands have been pre-set
to make it easy to enjoy the DJ-X7E right from the start.
|
Price: £139.95 (C) |
|

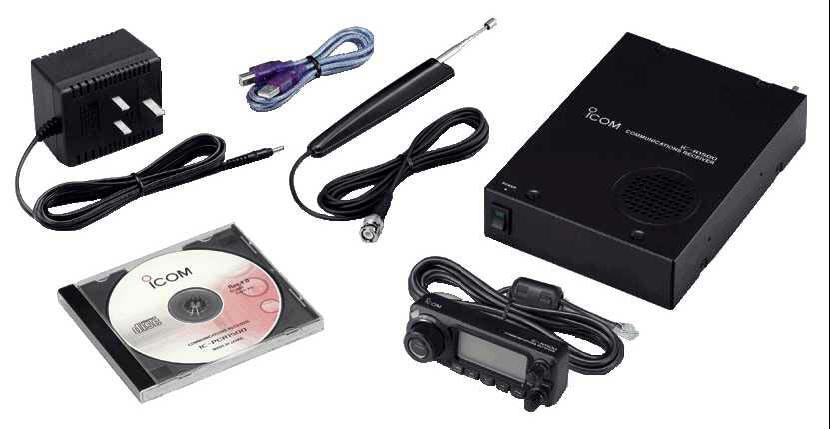

IC-R1500 Communications Receiver
Face off kit to facilitate mobile use
0.01 ~ 3299.999 MHz
The IC-R1500 covers 0.01 ~ 3299.999MHz in
AM, FM & WFM modes (0.495-1300MHz only in SSB and CW modes). 1Hz fine tuning
resolution is available in all bands. When connected to a PC, all functions can
be controlled by the click of a mouse or from keyboard input.
-
• Frequency coverage :
0.010–3299.999MHz*
-
Guaranteed range
0.495–3000.000MHz
-
• Mode : AM,
FM, WFM, USB*, LSB*, CW*
-
* 0.01–1300MHz only.
-
• Usable temperature range:
-
With controller 0°C
to +60°C; +32°F to +140°F
-
Without controller –10°C
to +60°C; +14°F to +140°F
-
• Frequency stability : Less
than ±3ppm on the basis of
-
25°C (–10°C to +60°C)
-
• Tuning steps : 1Hz
(minimum)
-
• Power supply : 12.0V
DC ±15%
-
• Current drain (12.0V DC, IC-PCR1500):
-
Max. audio :
0.85A typ.
-
Stand-by :
0.7A typ.
-
• Antenna Impedance : 50Ω(BNC)
-
• Dimensions (WxHxD, projections are not
included) :
-
Main unit 146x41x206 mm;
53⁄4x15⁄8x81⁄8 in
-
Controller 111x40x26.5 mm;
43⁄8x19⁄16x11⁄32 in
-
-
• Weight (approx:) :
-
Main unit 1200g; 2.6lb
-
Controller 200g; 7oz
(including cable)
|
- 0.01 to 3299.999MHz wideband coverage
- with SSB, CW, AM, FM, WFM modes
User selectable interface - PC or remote control
Same functions as IC-PCR1500 when connected to a PC
Multi-channel monitor function
High speed scanning of up to 60 channels per second
VSC, CTCSS and DTCS tone squelch
Two types of bandscope
Optional UT-106 DSP unit
2 Year Warranty
|
(List Price £465.24)
|
Price: £419.95 (D) |
|
IC-PCR1500 PC Communications Receiver
The IC-PCR1500 computer-controlled receiver is the long awaited successor to the
IC-PCR1000. It is designed for receiver enthusiasts and professional users.
Covering 0.01 to 3299.999MHz in AM, FM & WFM modes (0.495- 1300MHz in SSB and CW
modes), this new receiver features versatile functions including a multi-channel
monitor, bandscope and IF shift function to provide efficient reception for the
user.
•
0.01 to 3299.999MHz
wideband coverage
•
Three different
interface screens; “Compact screen”, “Component-style” and “Communications
receiver”
•
Multi-channel monitor
function
•
USB cable connection
•
High speed scanning of
up to 60 channels per second
•
VSC, CTCSS and DTCS tone
squelch
•
Two types of bandscope
•
Optional UT-106 DSP unit
2
Year Warranty
Computer Screen Shots
(List Price £411.19)
|
Price: £369.95 (D) |
|

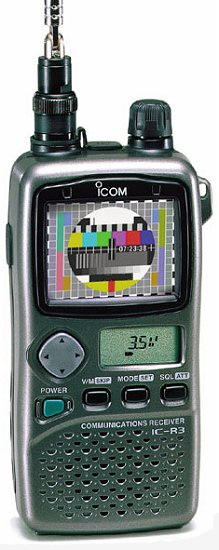

IC-R3
0.5 ~ 2,450MHz
Handheld Audio/Visual Receiver
-
TV receiver equipped with 2 inch TFT LCD
-
Various commercial applications
-
Band scope function (adjacent 5ch. From the operating
frequency)
-
Wide band coverage (Frequency range : 0.5 ~ 2,450MHz)
-
Lithium-ion battery (1600mAh)
-
Alkaline battery also can be used.
-
400 memory channels
-
Simple to use
-
Fast memory and frequency scan
|
Price: £339.95 (D) |
|
IC-R5
0.150–1309.995 MHz in AM, FM and WFM modes
Compact Wideband Handheld Receiver
-
0.150 to 1309.995MHz wide band coverage with AM, FM, WFM
modes
-
Built-in rod antenna clearly improves low frequency
broadcasts
-
Total of 1250 memory channels
-
(1000 regular channels with 18 memory banks, 50 scan edges
and 200 auto memory write channels)
-
High speed scanning (30 channels per second)
-
DC power jack for use with cigarette lighter socket
-
Ultra compact size, with drip-resistant construction
-
CTCSS and DTCS tone squelch
-
Cloning capability via USB cable
The IC-R5 comes complete with BC-07 UK battery charger, 2 AA
rechargeable batteries, FA-S270C antenna, belt clip, hand strap and a handbook.
|
Price: £159.95 (C) |
|
IC-R20
Communications Receiver
- Dualwatch capability (in selected bands)
- 0.150 to 3304.999MHz wideband coverage in SSB, CW, AM, FM, WFM
modes
- Built-in 260 minute digital (audio) recorder
- High speed scanning – 100ch/sec (VFO scan)
- Total of 1250 memory channels
- Standard Lithium-Ion battery that allows up to 11 hours of continuous
receive capability (FM mode, single receive)
- Operation and charging from an external power source
- Built-in ferrite bar antenna for AM and earphone cord antenna for FM
broadcasts
- VSC,CTCSS and DTCSS tone squelch
- Useful bandscope
- Optional CT-17, CI-V controller for PC remote control
- Dial speed up function…When rotating the tuning knob rapidly, the tuning
speed automatically speeds up.
- Scan pause setting (2-20 seconds and hold) and scan resume (0-5 seconds
and hold) setting.
- Auto power off (30-120 minutes and busy)….Busy setting turns off the
IC-R20 when signal is received for 3 minutes.
- Various key lock functions…All, No SQL, No VOL and Normal lock settings.
- Rotary selector and up/down buttons are reversible.
|
Price: £299.95 (D) |
|

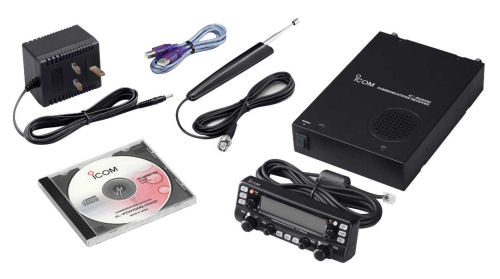

IC-R2500
0.01-3299.999 MHz in AM, FM, WFM, SSB, CW
and DV*2 modes
Wideband Mobile Receiver
- Optional DSP capability with UT-106
- CTCSS/DTCS tones and duplex mode operation for monitoring a repeater
- VSC (Voice squelch control) opens the squelch only when a modulated signal
is detected
- IF filter selection for changing IF filter width
- IF shift function (SSB, CW mode only)
- Noise blanker eliminates pulse type noise such as engine ignition noise
(SSB, CW, AM mode only)
- AFC function follows the frequency drifts in FM mode (BW: 6kHz or 15kHz)
- 20dB (approx.) RF attenuator (below 1300MHz)
- 30 min - 2 hour auto power off timer
- Fast/slow AGC setting
- Short/long squelch delay
- All IC-PCR2500 functions are available when connected to a PC
- Cloning function allows you to read/write memory contents from your PC.
Sharing the data with IC-PCR2500 is also possible.
|
Price: £529.95 (D) |
|

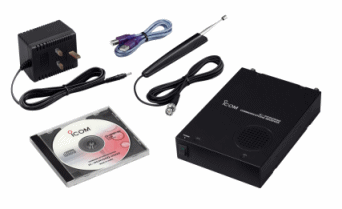

IC-PCR2500
0.01-3299.999 MHz in AM, FM, WFM, SSB, CW
and DV*2 modes
Wideband PC Receiver
- Bandscope and time-line scope
- Optional UT-106 DSP unit provides auto notch filter and noise reduction
functions
- Voice recording function
- VSC (Voice squelch control) opens the squelch only when a modulated signal
is detected
- S-meter squelch
- Pocket beep function
- CTCSS/DTCS tones and duplex mode operation
- IF filter selection for changing IF filter width
- IF shift function (SSB, CW mode only)
- Noise blanker eliminates pulse type noise such as engine ignition. (SSB,
CW, AM mode only)
- 20dB (approx.) RF attenuator (below 1300 MHz)
- Auto memory write scan stores detected frequency and mode into the PC
memory.
- AFC function follows the receiving frequency when the frequency drifts in
FM mode. (BW: 6kHz or 15kHz)
- AGC function; Fast/slow setting is possible
- 24-digit DTMF tone decoder
- Squelch delay
- Up to 2600 memory channels per file.
|
Price: £474.95 (D) |
|

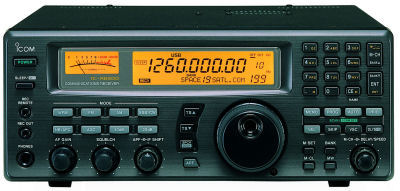

IC-R8500
The IC-R8500 covers a wide frequency range from
0.1 to 2000MHz (with 10Hz resolution) while maintaining a high receive
sensitivity. The IC-R8500 is not simply a scanner, it is a professional quality
communications receiver with versatile features that will appeal to both the
serious receiver enthusiast or professional user.
- Professional grade desktop receiver
- Wide frequency coverage from 0.1 to 2000MHz
- All mode receive capability (FM, WFM, AM, USB, LSB, CW)
- Superior receive characteristics
- 1000 memory channels available
- Versatile scanning functions
- RS-232C interface
- 8-character alpha numeric display for ease of use.
|
Price: £1199.00 (D) |
|
SE900 Discone Scanning Antenna.
|
RX: 25 ~ 900MHz |
|
TX: 70 ~ 500MHz |
|
Power: 200 Watts |
|
Impedance: 50 Ohms |
|
Price: £29.95 (C) |
|
SE1300 Discone Scanning Antenna.
|
RX: 25 ~ 1300MHz |
|
TX: 6m, 2m, 70cm, 32cm & 23cm band |
|
Power: 200 Watts |
|
Impedance: 50 Ohms |
|
Price: £49.95 (C) |
|
Please
Be Aware That It May Be An Offence In Certain Countries To Monitor Some
Frequencies.
Contact your local radio
communications agency or dealer for information.
|
19 Cambridge Road
Clacton~on~Sea Essex CO15 3QJ
